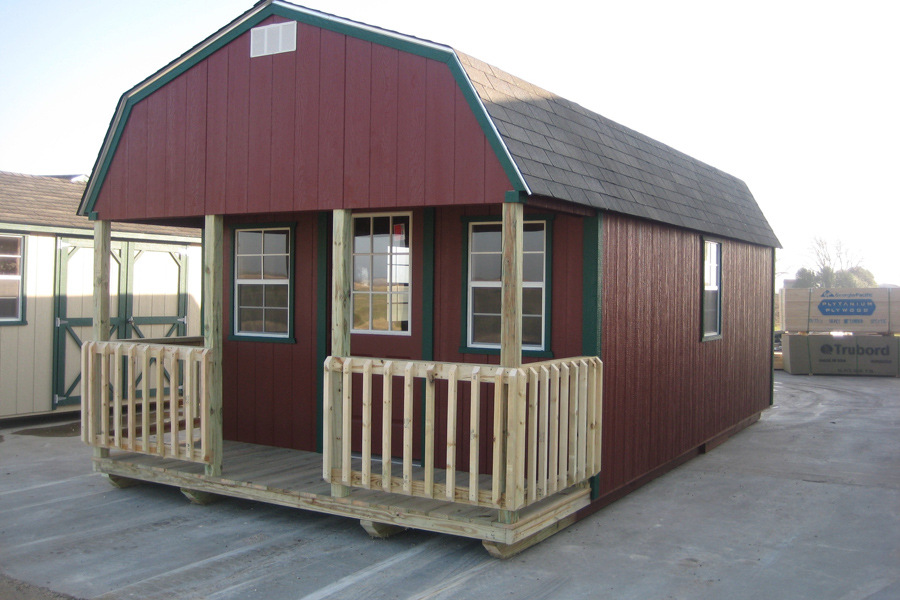

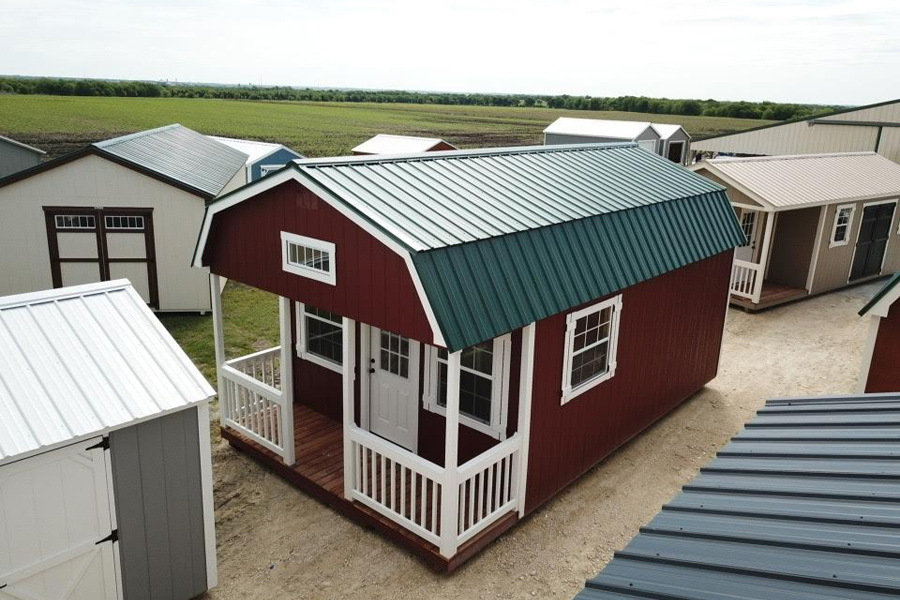

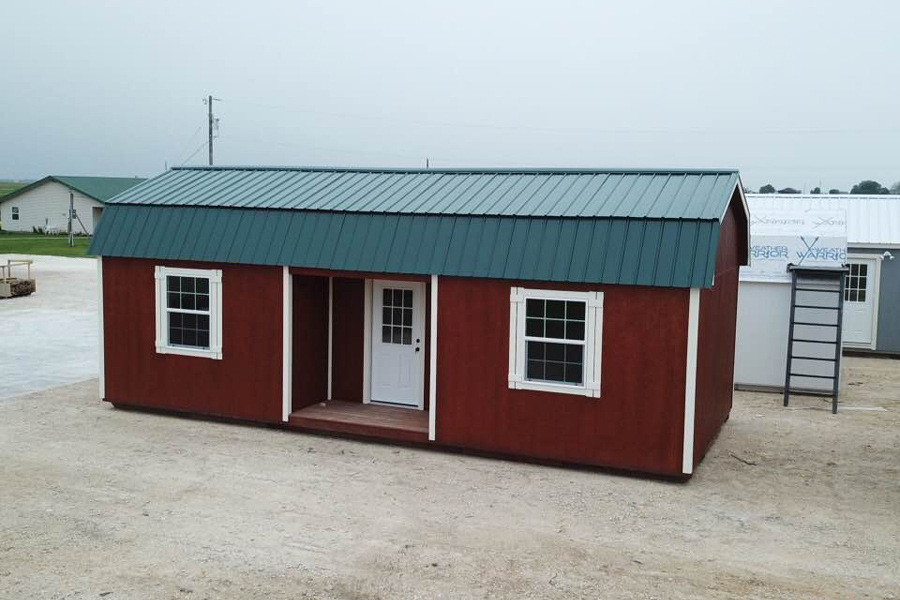

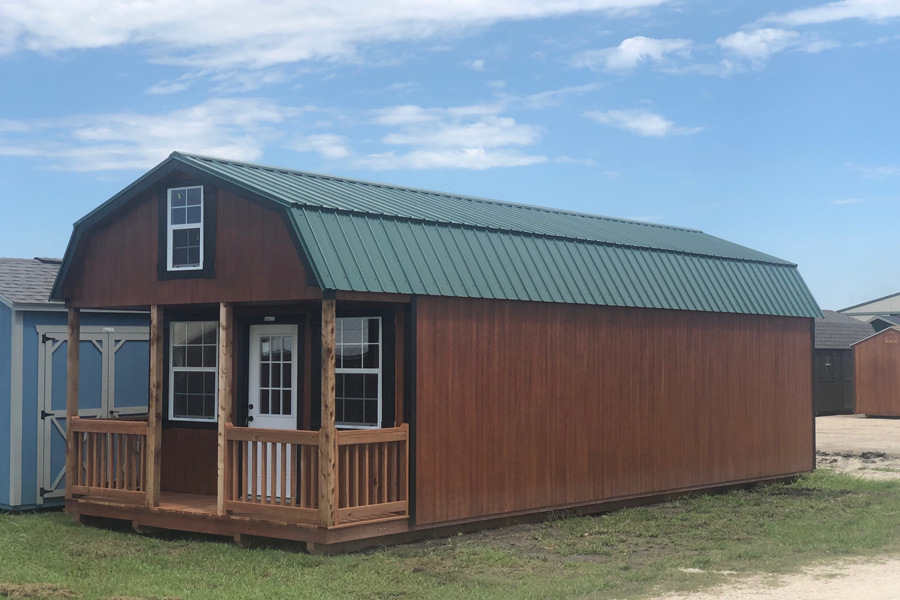

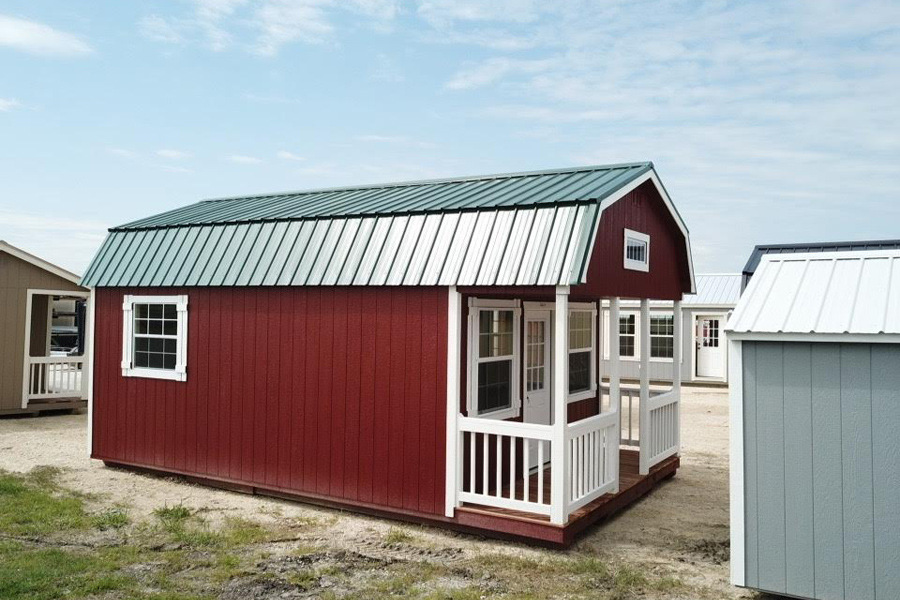

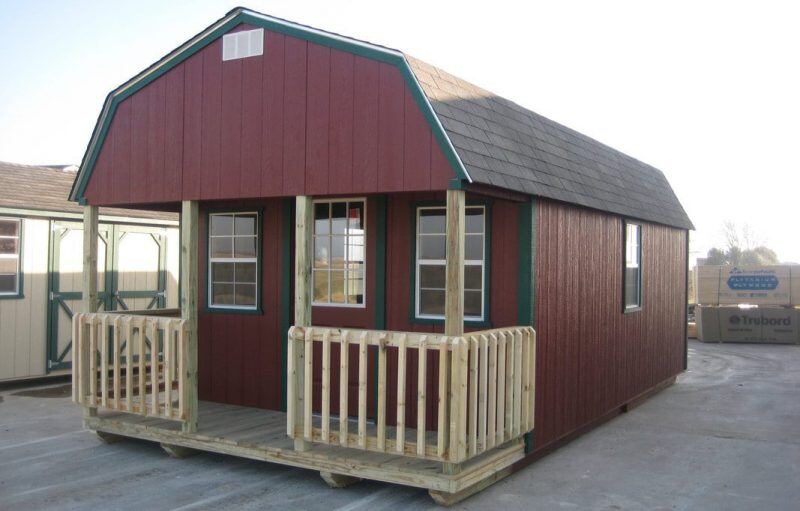

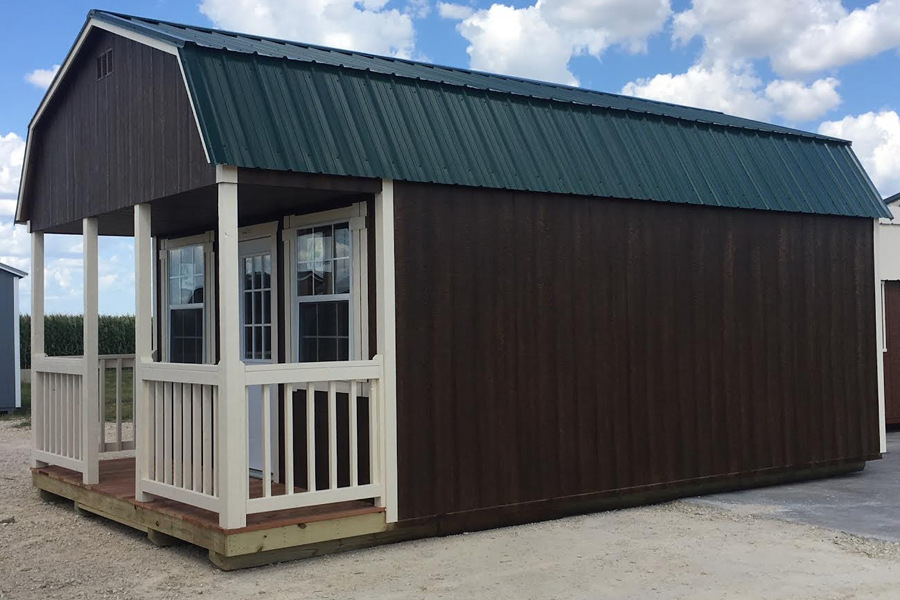

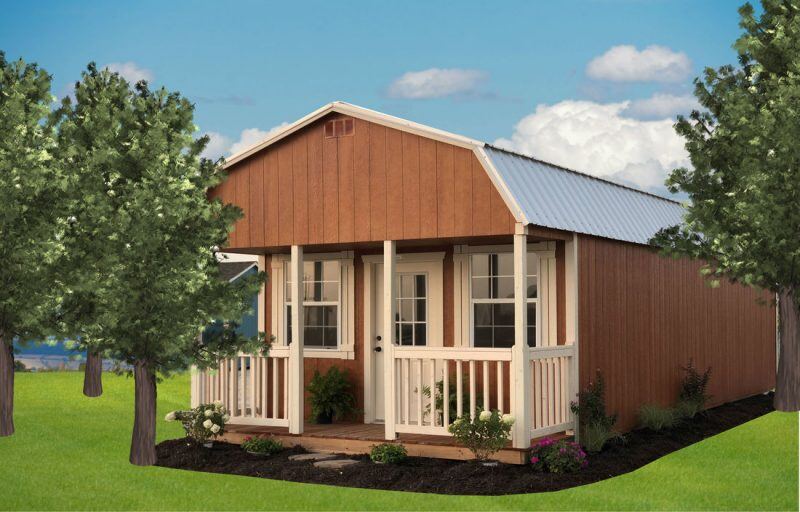

UNFINISHED TINY HOUSE CABIN WITH LOFT

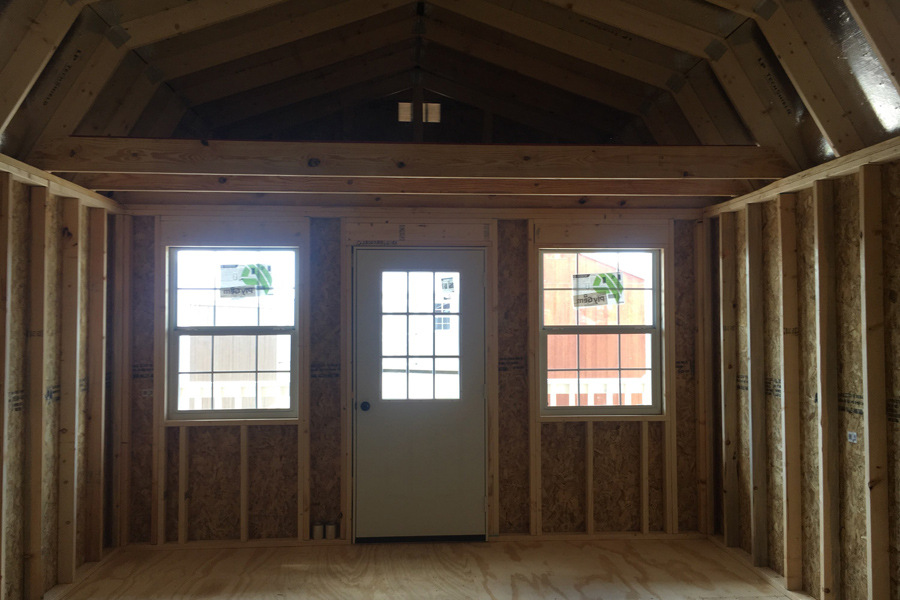

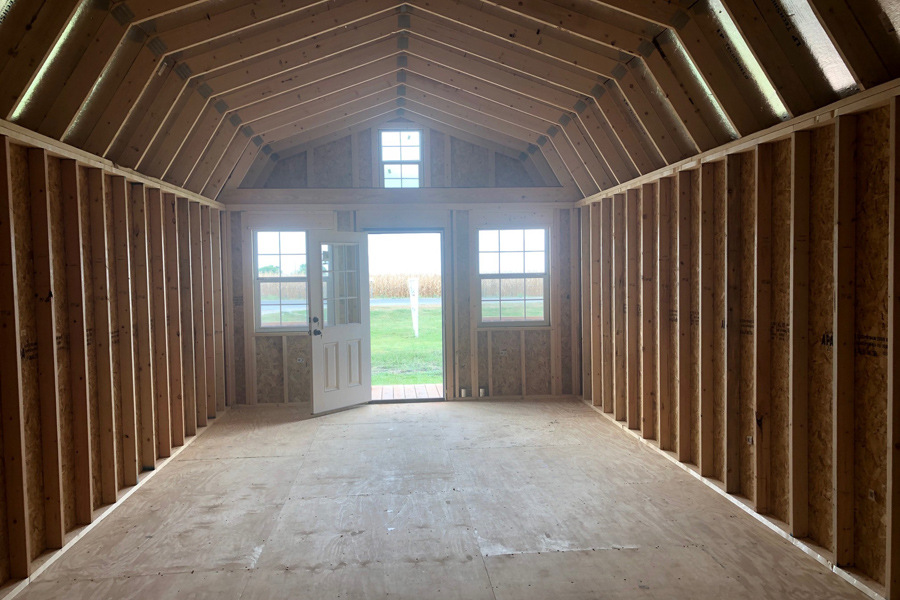

Deciding on a portable building over a stick built cabin is an easy decision. Choosing whether or not you want, or need the additional lofted area, requires some thought. If you need additional sleeping quarters, a reading room or large storage area, then this model is a good choice. On larger cabins you can configure the interior to have additional lofts, not just the single loft over the porch. Lofts can be placed over any of the interior rooms to increase the space without increasing the footprint.

Lofted cabins make for an excellent tiny home due to their versatility and interior room as well as their low cost. With the proper finishes, this can be a spectacular home for the weekend or all the time. Adding some of our options will make this the perfect cabin or home for you.

New call-to-action
New call-to-action

UNFINISHED TINY HOUSE CABIN WITH LOFT

Deciding on a portable building over a stick built cabin is an easy decision. Choosing whether or not you want, or need the additional lofted area, requires some thought. If you need additional sleeping quarters, a reading room or large storage area, then this model is a good choice. On larger cabins you can configure the interior to have additional lofts, not just the single loft over the porch. Lofts can be placed over any of the interior rooms to increase the space without increasing the footprint.

Lofted cabins make for an excellent tiny home due to their versatility and interior room as well as their low cost. With the proper finishes, this can be a spectacular home for the weekend or all the time. Adding some of our options will make this the perfect cabin or home for you.

Need a place to park the car in and out of the weather? Check out our quality Garages.

New call-to-action
New call-to-action

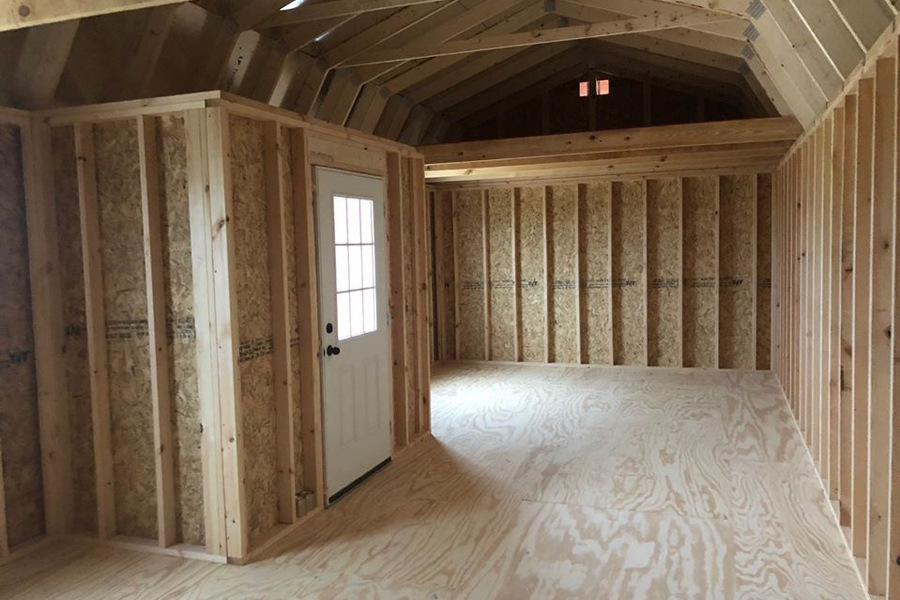

Features

  • 4”x6” Pressure Treated Timber Skids
  • 2”x6” Pressure Treated floor joist on 16″ centers
  • 3/4″ BC plywood floor nailed to the floor joist with 3” ring shank nails.
  • 2”x4” wall studs placed 16″ on center, with double studded corners.
  • Double 2’x8’ top plate for extra sidewall and eave strength
  • 7/16” LP Silver Tech on the walls, this can keep your building up to 15-20 degrees cooler in the heat of the summer.
  • All nails and joints are caulked and sealed to provide a smooth exterior finish.
  • Two Coats of our 10yr. no fade warranty + 25yr. adhesion warranty, Haley paint.

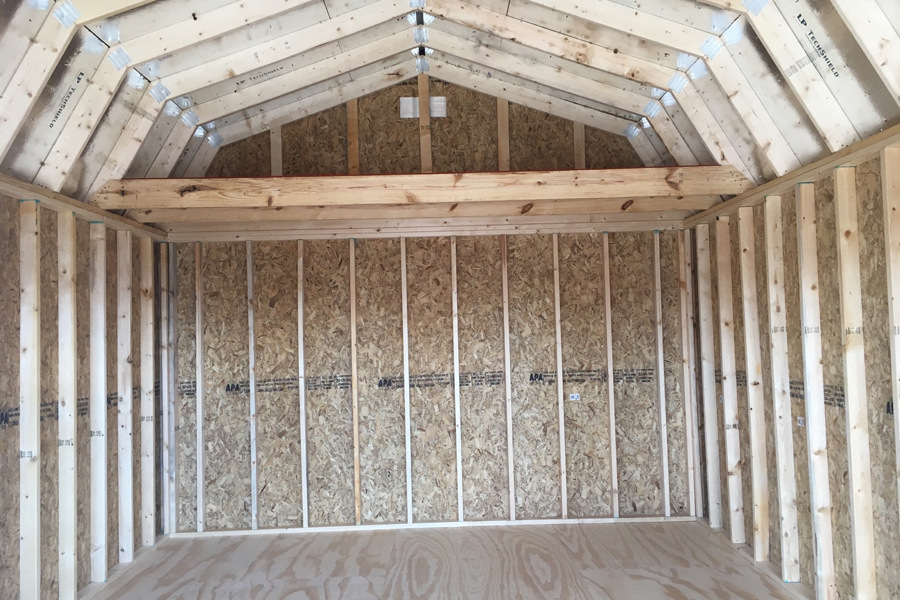

  • Buildings up to 12’ wides have 2”x4” roof trusses placed 24” on center
  • Buildings 14’ – 16′ wide have 2”x6” roof trusses placed 24” on center
  • 7/16″ Radiant Barrier Sheathing on the roof, more technology to keep the building cooler in summer.
  • Complete 4″ overhang
  • Drip edge on roof
  • Synthetic felt on top the SolarBoard OSB to seal the roof

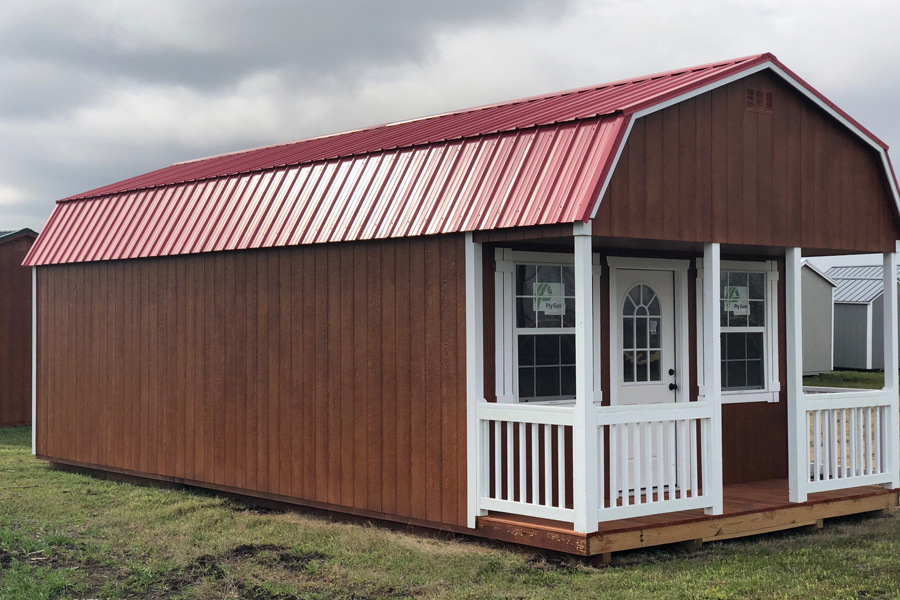

  • 30 yr. dimensional shingles, or choose the 40 yr. metal roof
  • Vented Ridge
  • 8” x 16″ end wall vents
  • Two 3’x4’ windows and shutters
  • One 9-Lite Steel Entry Door

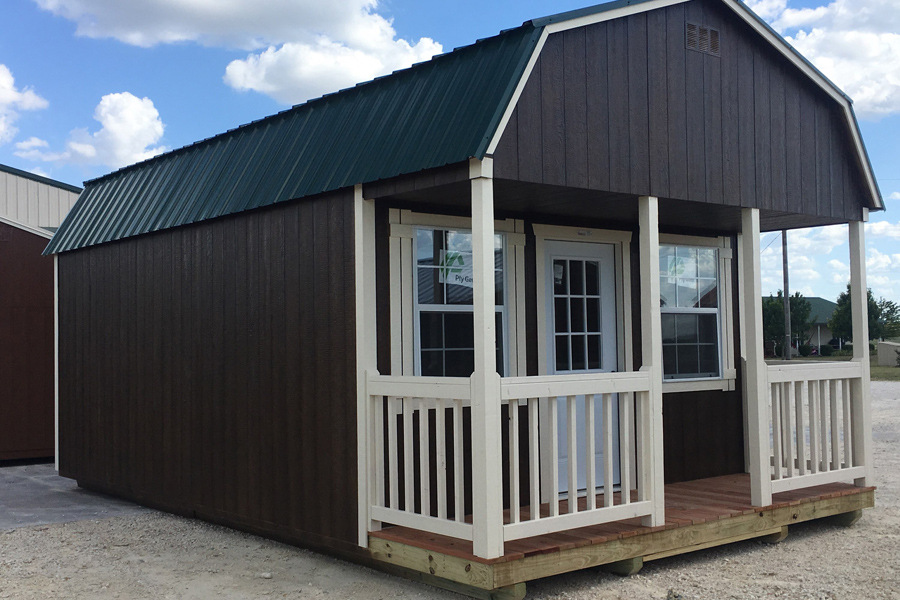

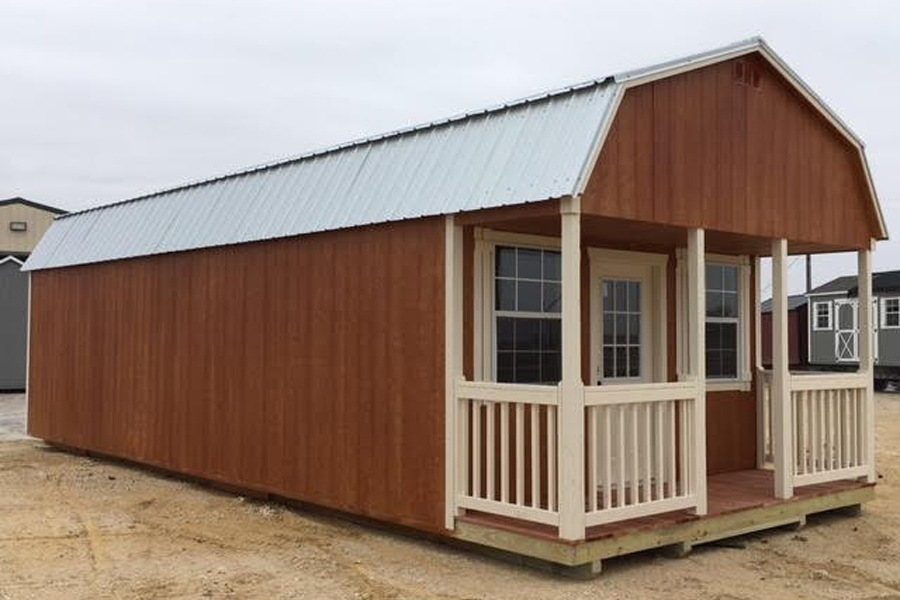

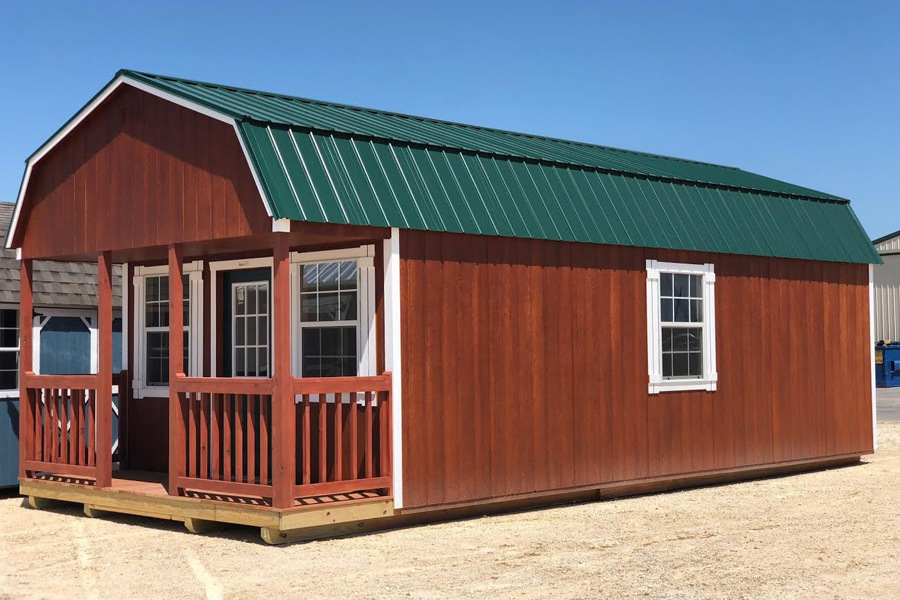

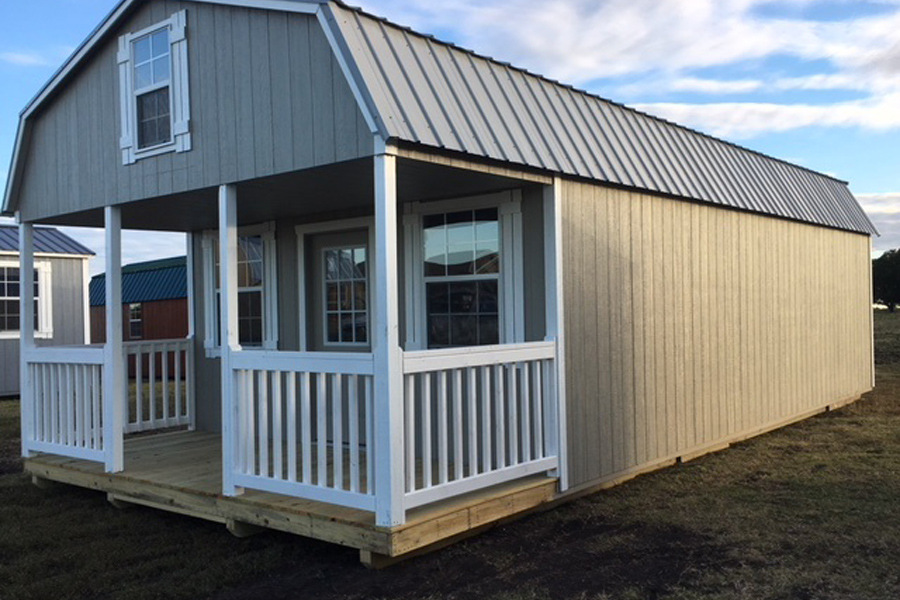

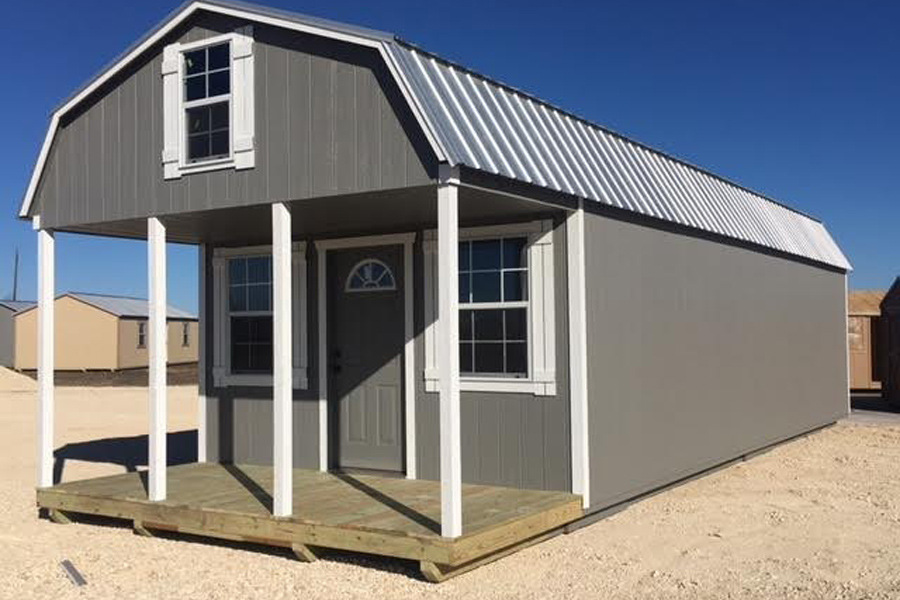

  • 4’ Deep Front Porch
  • Buildings 14’ – 16′ wide have 2”x6” roof trusses placed 24” on center
  • Roof trusses plated together with 2-1/4” x 5″ Steel plates
  • 7/16″ OSB Roof Sheathing
  • Drip edge on roof
  • Synthetic felt on top the OSB to seal the roof
  • 30 yr. dimensional shingles, or choose the 40 yr. metal roof
  • 8” x 16″ end wall vents

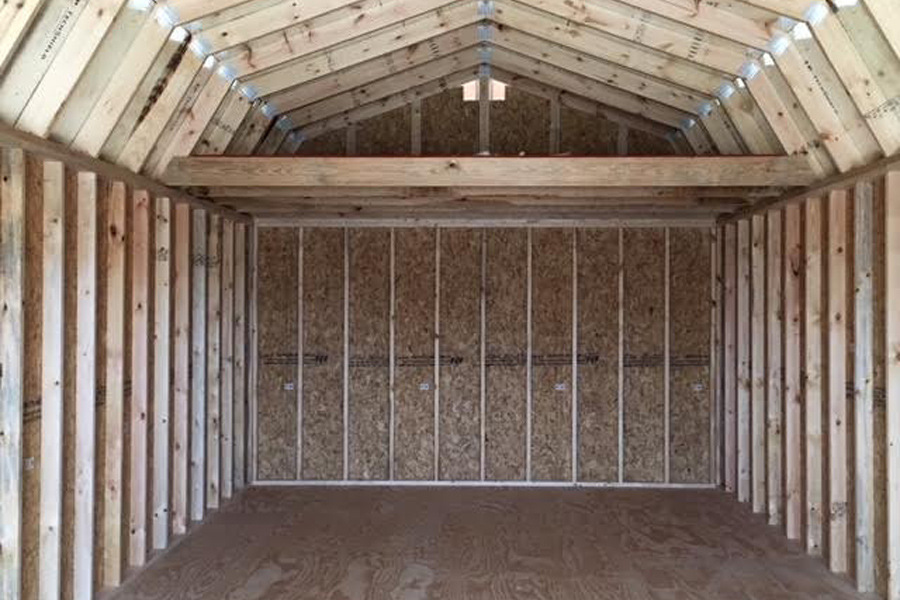

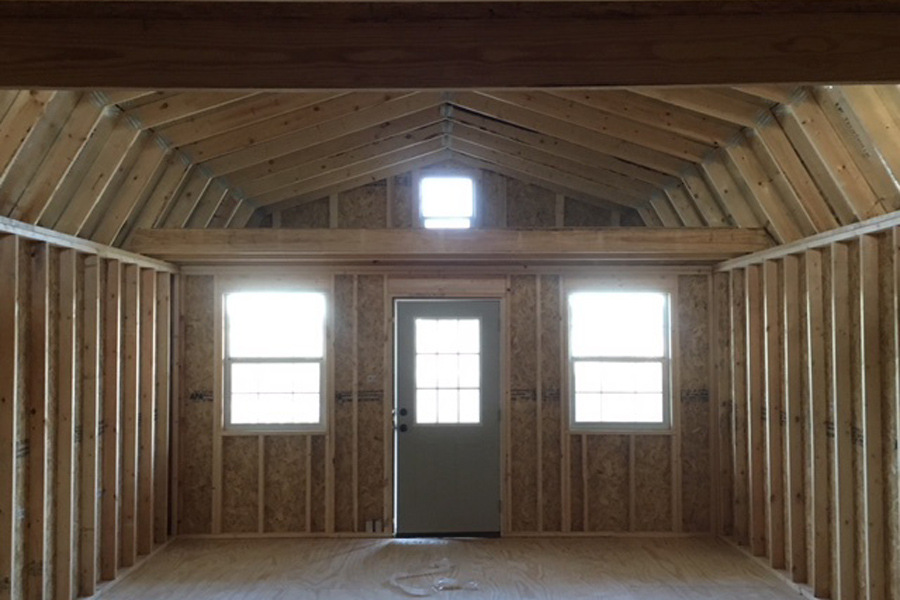

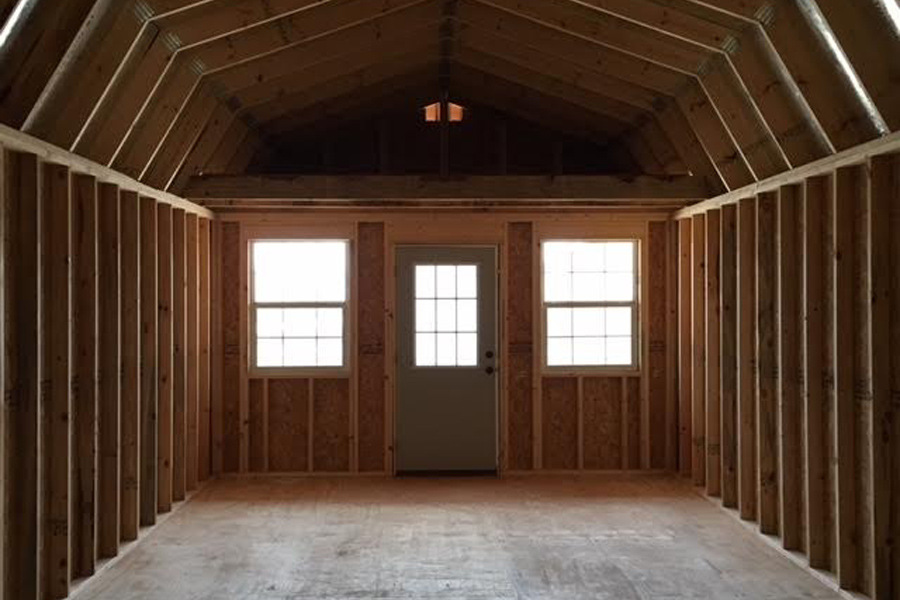

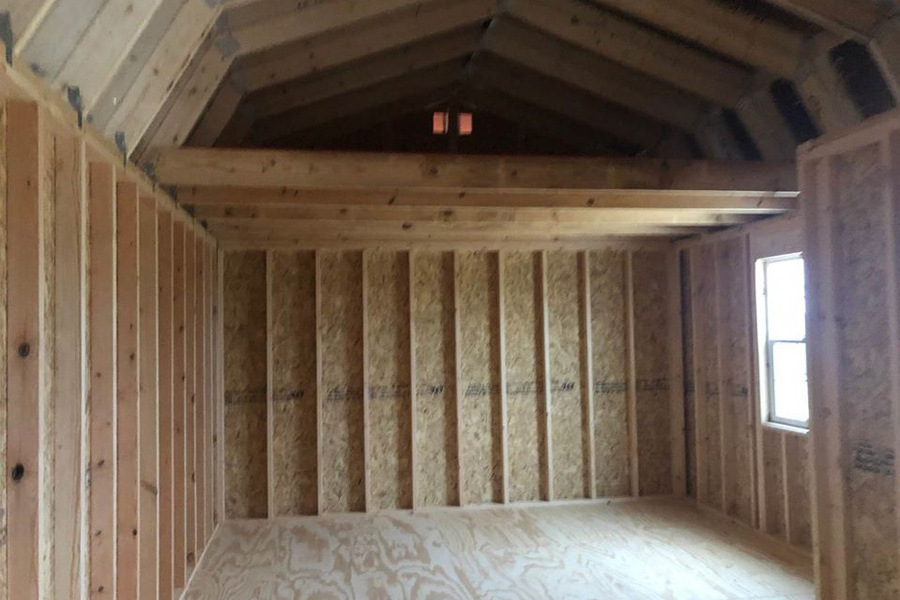

  • 16′ long buildings receive two 4′ deep lofts
  • 20′ or longer buildings receive two 8′ deep lofts
  • Two 2’ x 3’ windows
  • Diamond Plate Door Threshold
New call-to-action
New call-to-action

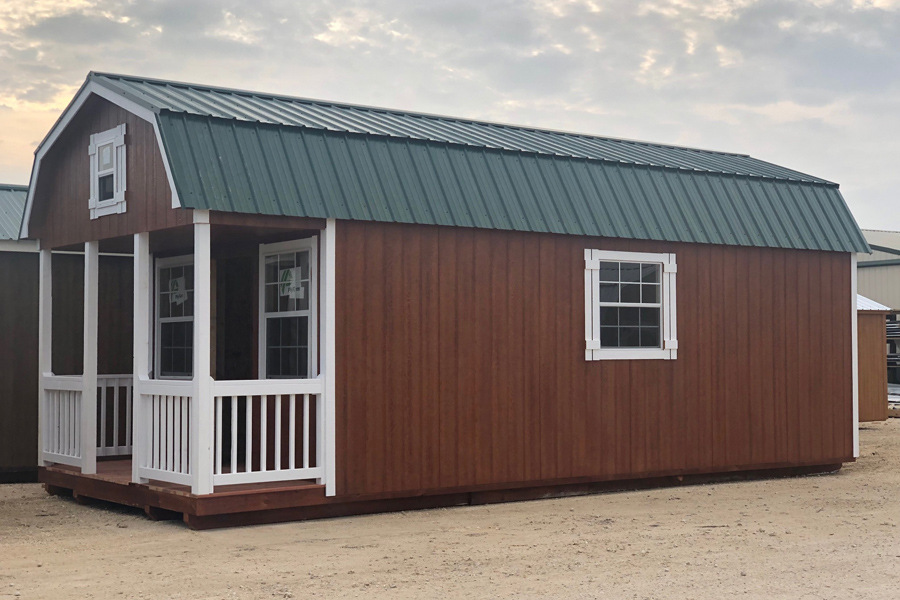

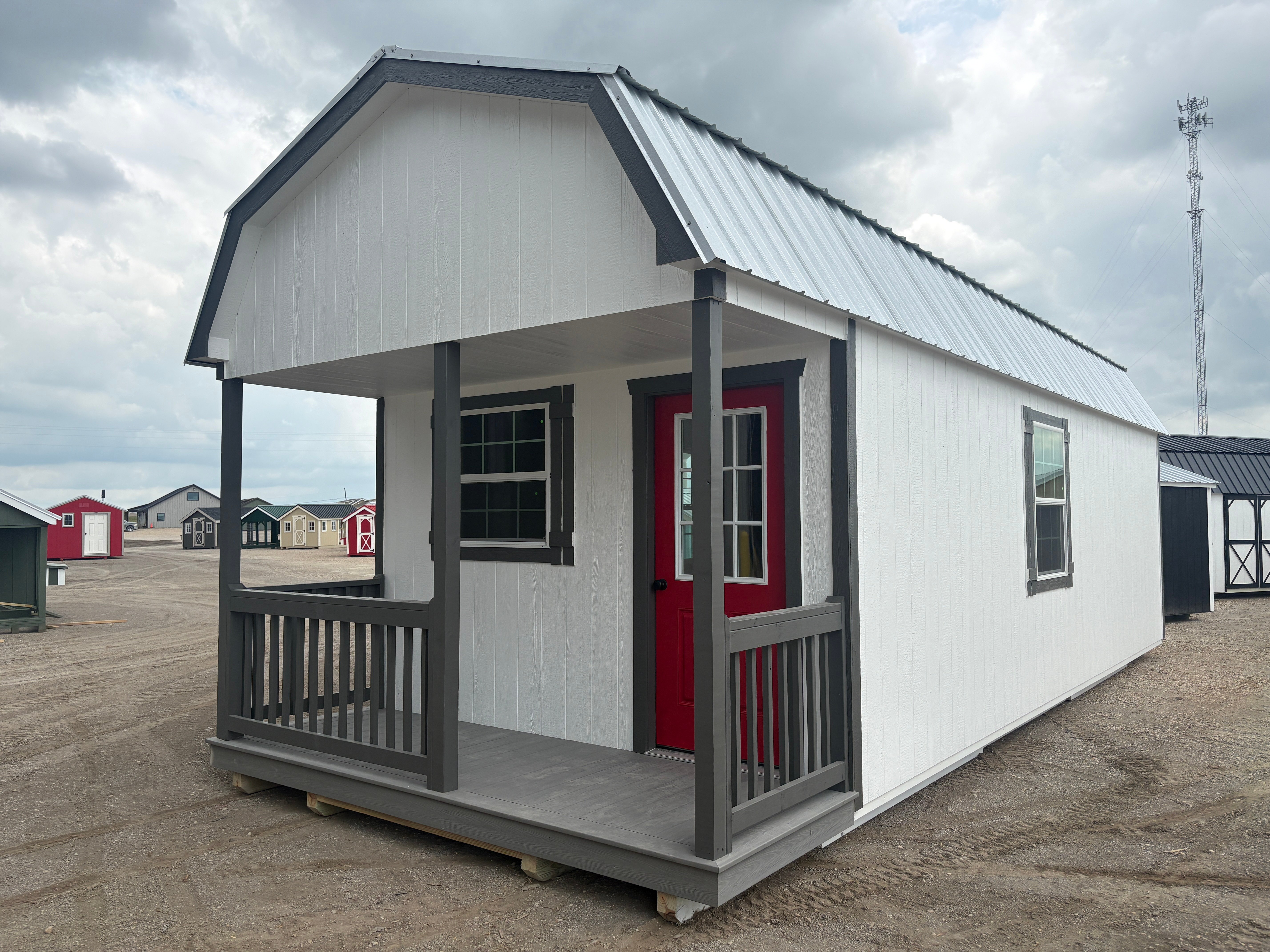

Tiny House Cabin With Loft

Portable Cabin With Loft

Factory Direct
Pricing

Click image to enlarge

Options

2×3 Window $75.00

2×3 Window w/ Shutters $95.00

3×3 Single Pane $100

3×3 Single Pane w/ Shutters $120

2×3 Window w/ Shutters $95.00

Standard $75.00

3×3 Double Pane $210

3×3 Double Pane w/ Shutters $230

3×4 Insulated Window $230

3×4 Insulated Window w/ Shutters $250

3×5 Double Pane $260

3×5 Double Pane w/ Shutters $280

Transom window $95

Double Pane Transom $115

36″ Single Door $100

6′ Double Doors $175

6′ Double Doors w/ Transom Windows

$325

Fiberglass Entry Door $300

9 Lite Door $350

Fan-Lite Door $350

11-Lite Door $400

Texas-Star Door $800

Add a Transom Window $75.00

Add Transom Windows to Double Doors

$150

6×6 Rollup Door $750

6×7 Rollup Door $750

9′ x 7′ Garage Door $895

BLUE
CHESTNUT
CHRISTIANA GRAY
TRICORN BLACK
NAVY BLUE
RONKS GRAY
GREEN
RED
LEOLA ALMOND
WHITE
NAVAJO WHITE
ZOOK TAN
PEQUEA GREEN
BUCKSKIN
NATURE WALK STAIN
CHESTNUT BROWN STAIN
DRIFTWOOD STAIN
SHALE
WILD-GRASSES
BORA-BORA-SHORE
https://qsbuildings.com/wp-content/uploads/2021/06/metal-roofing-colors-for-portable-buildings-in-dallas-tx_orig.png
BLACK SHINGLES
OAKRIDGE DRIFTWOOD SHINGLES
OAKRIDGE DESERT TAN SHINGLES
LP SILVER TECSHIELD SIDING $5 PER LIN. FT.
TYVEK HOUSE WRAP $1 PER SQ. FT.

Shelves 2’wide $10.00 per linear

foot per shelf

5×5 Wooden Ramp $350

6×5 Wooden Ramp $350

5′ Long Aluminum Ramps $475

5′ Long Aluminum Ramps for

6′ wide rollup door $550

5′ long Aluminum Ramps for

9′ Wide Garage door $600

Workbench 3/4″ plywood $15.00

per linear foot

A/C (Air Conditioner) Hole $50
