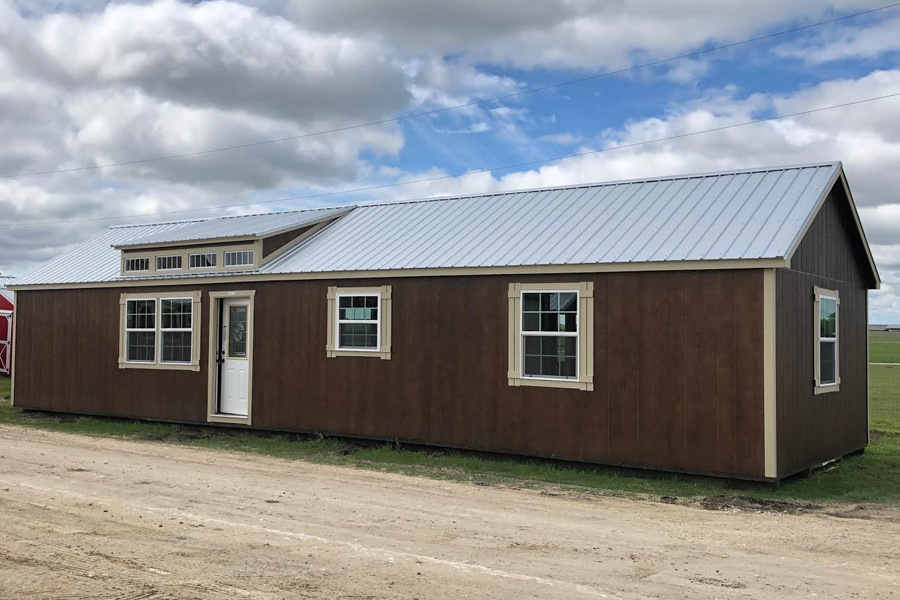

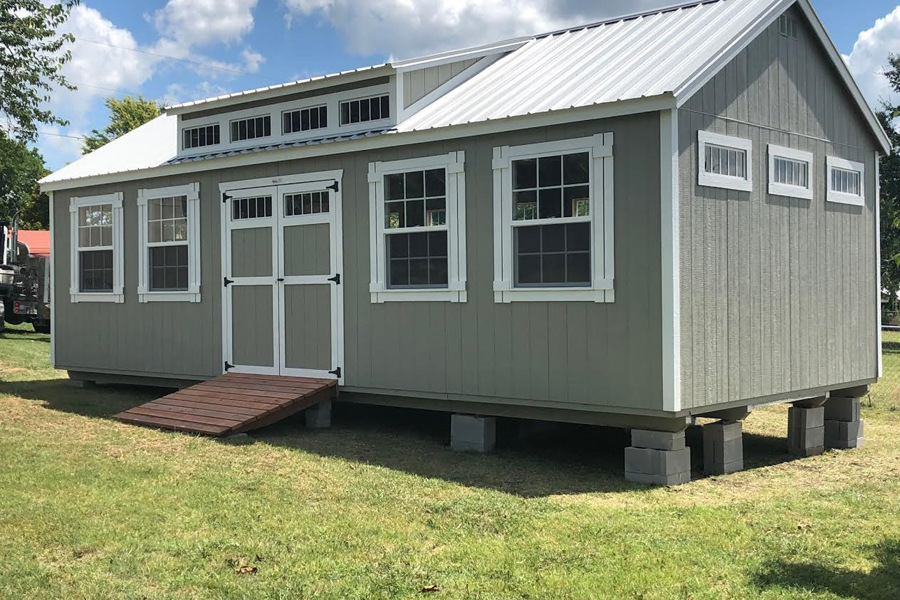

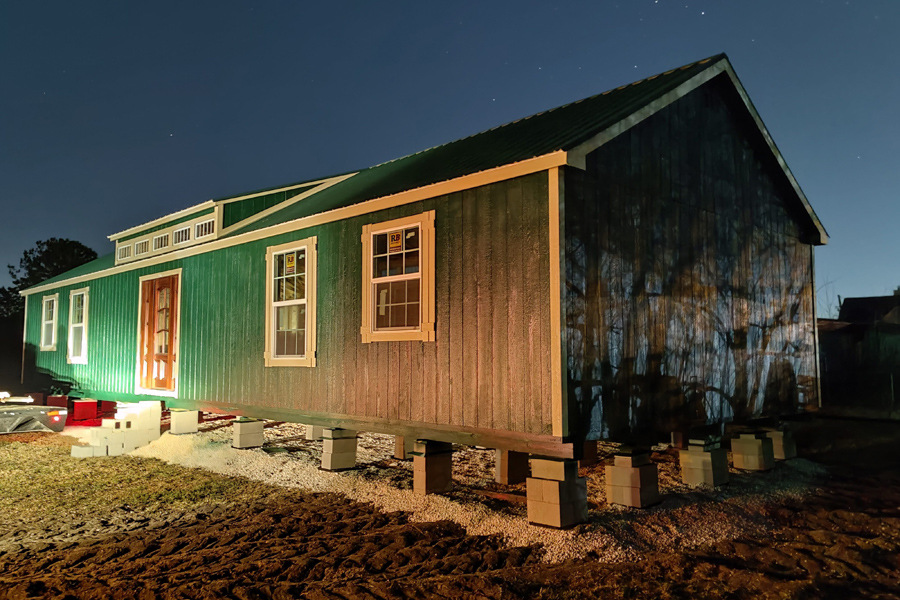

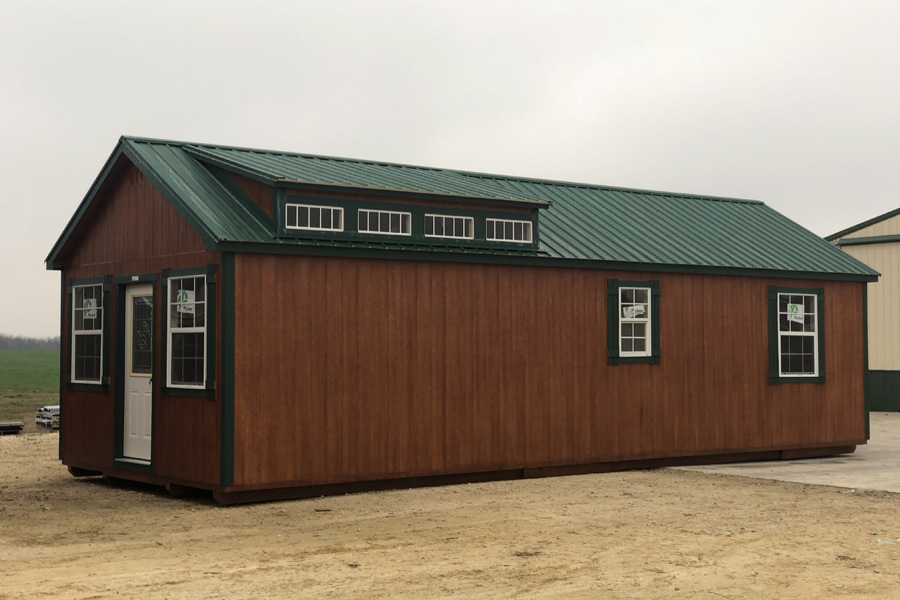

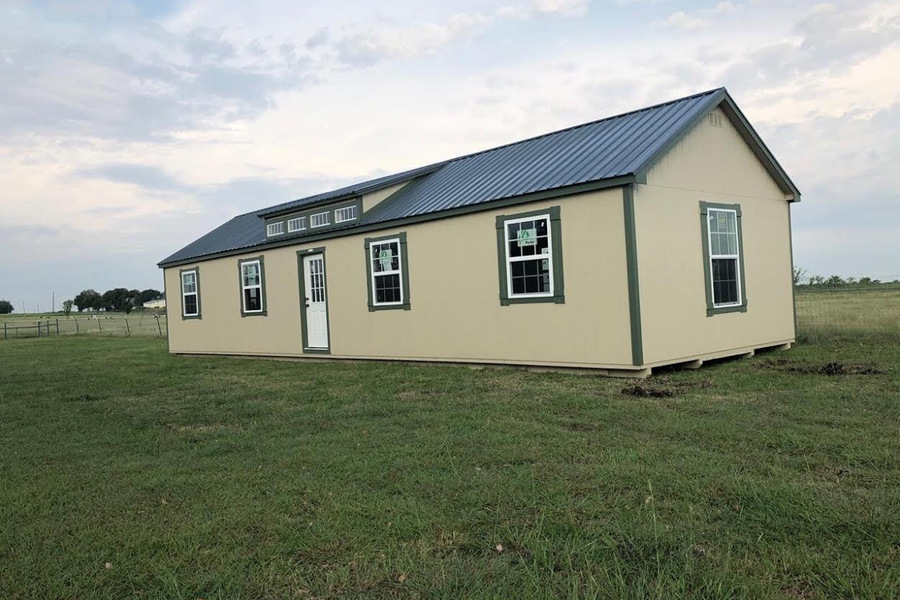

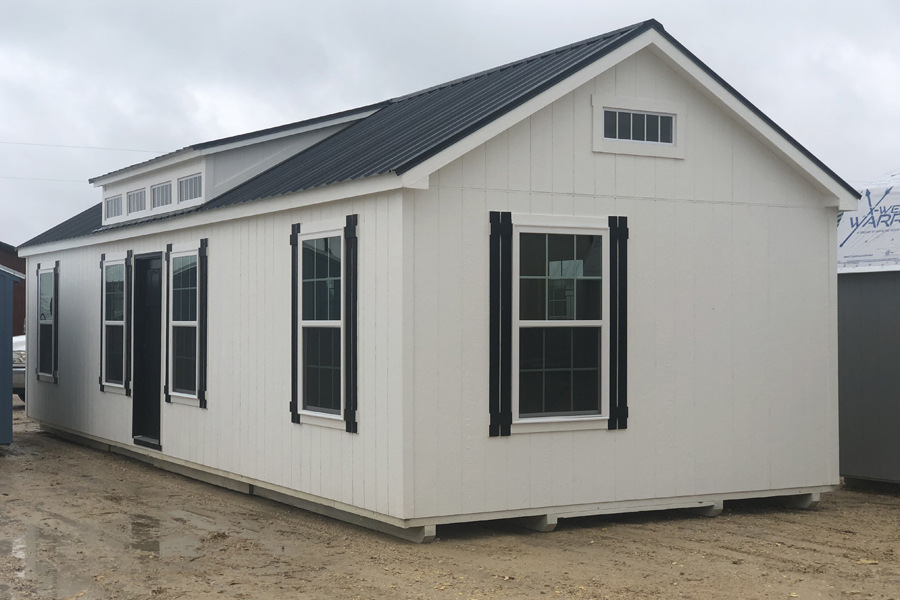

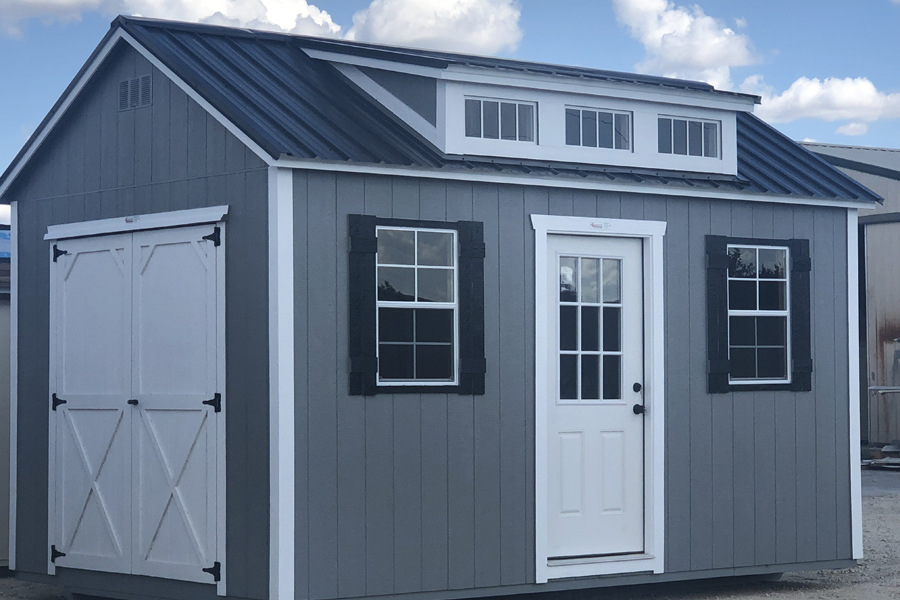

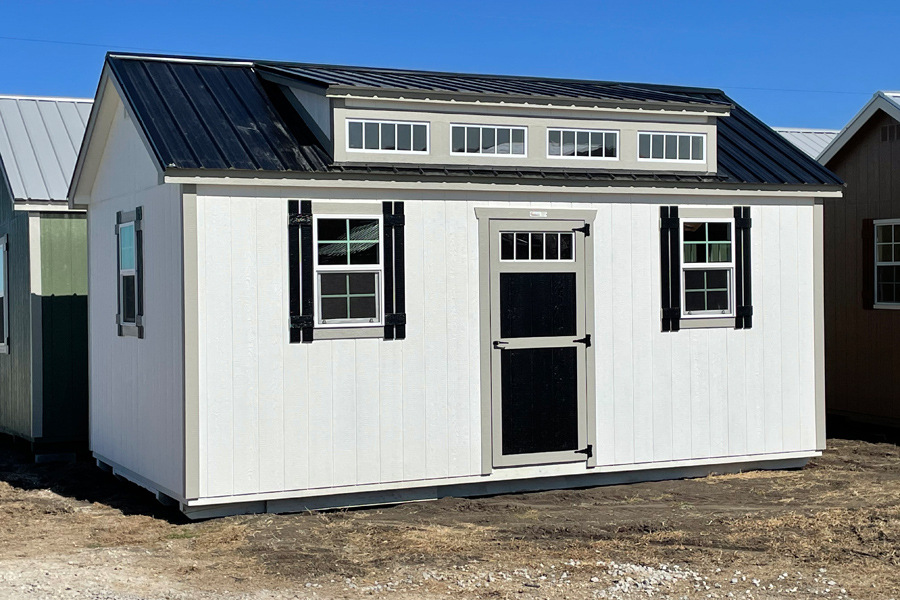

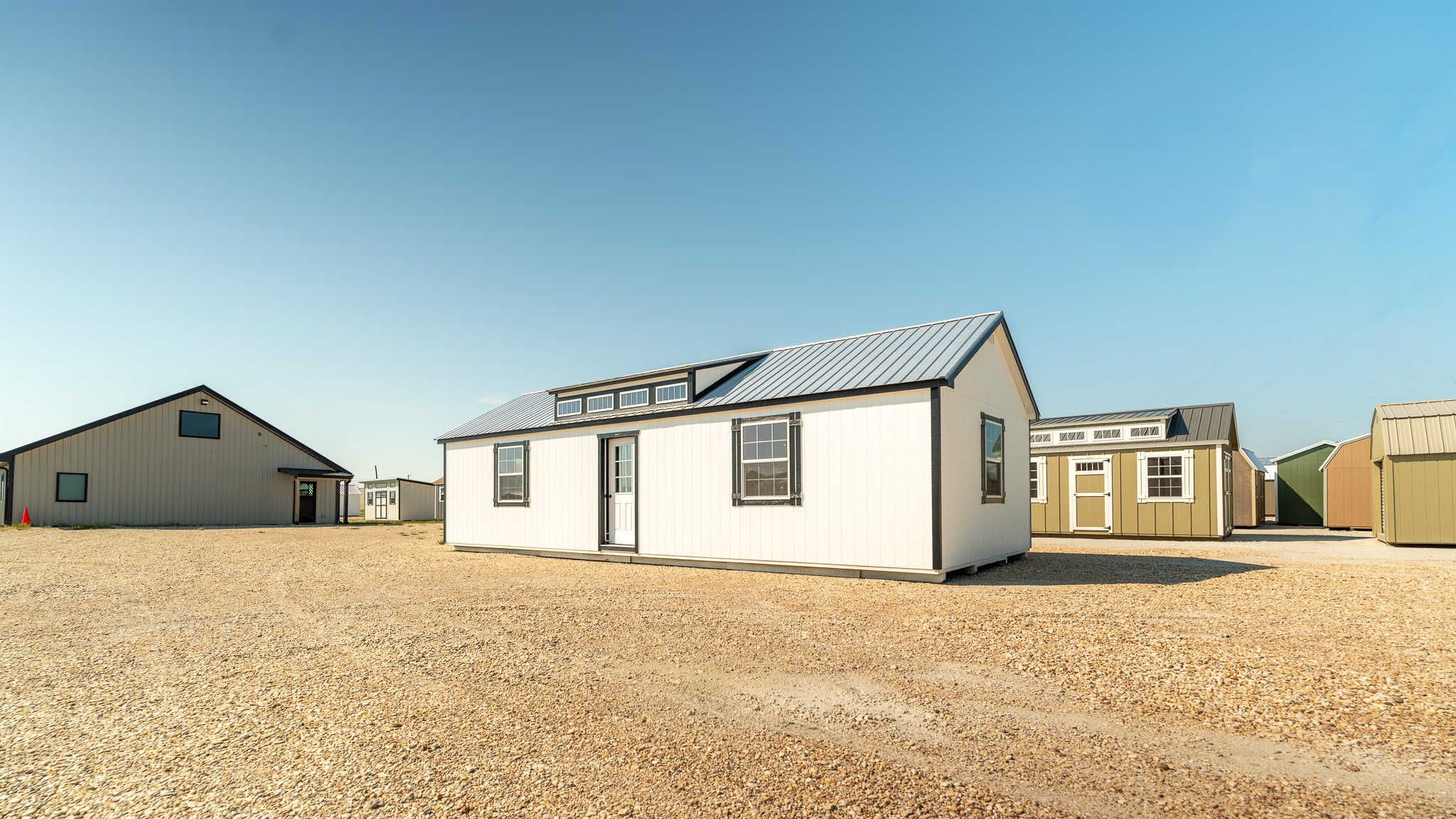

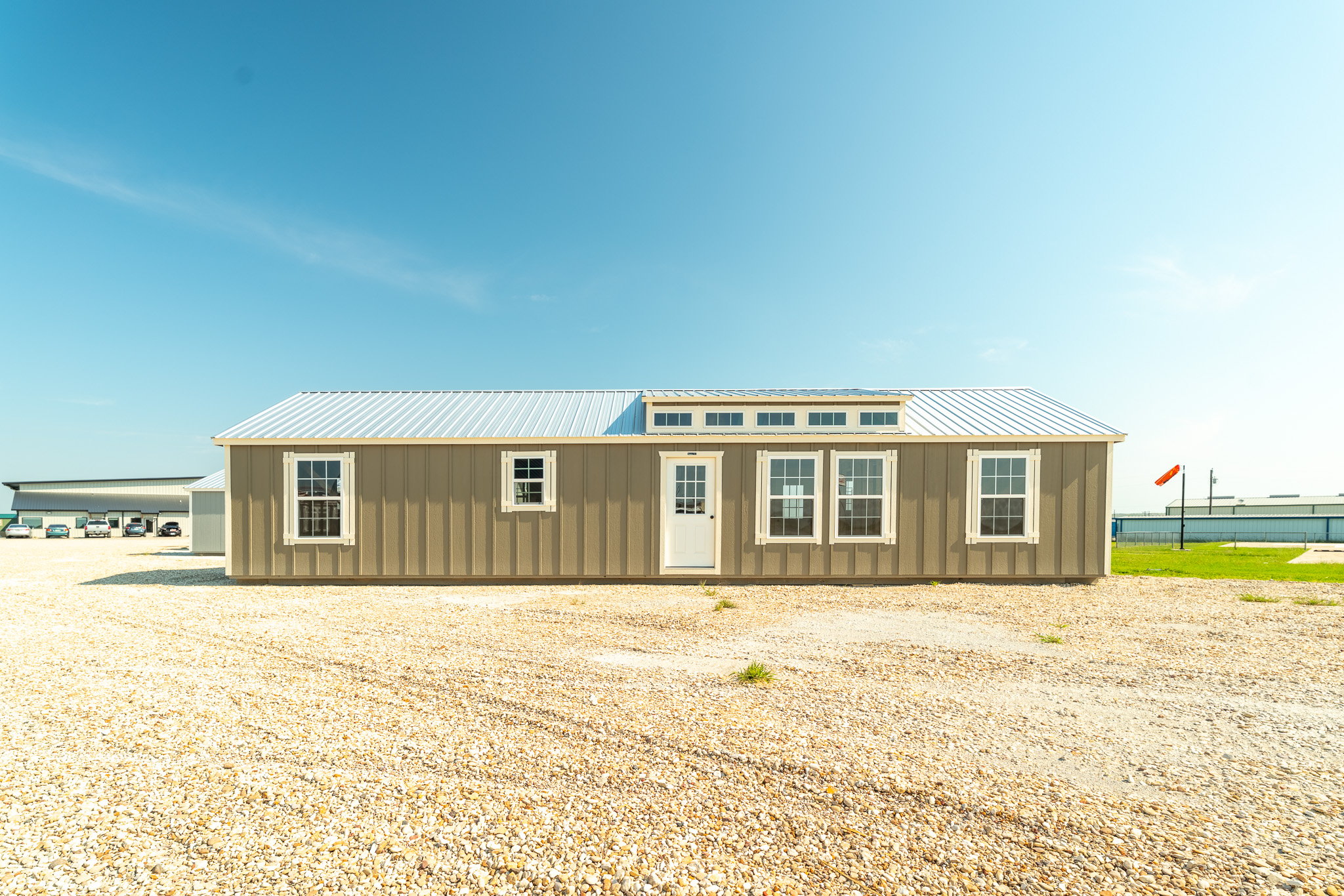

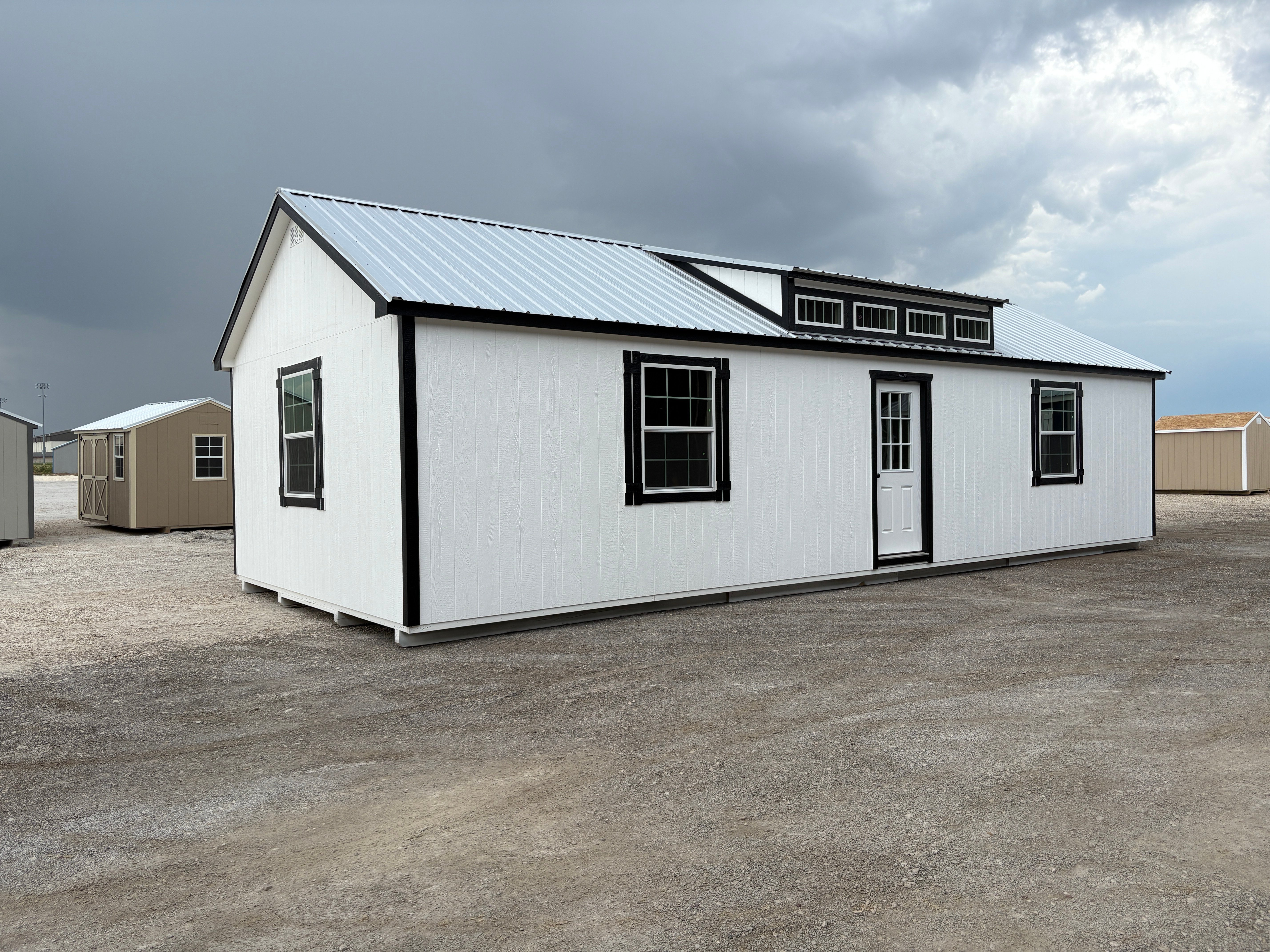

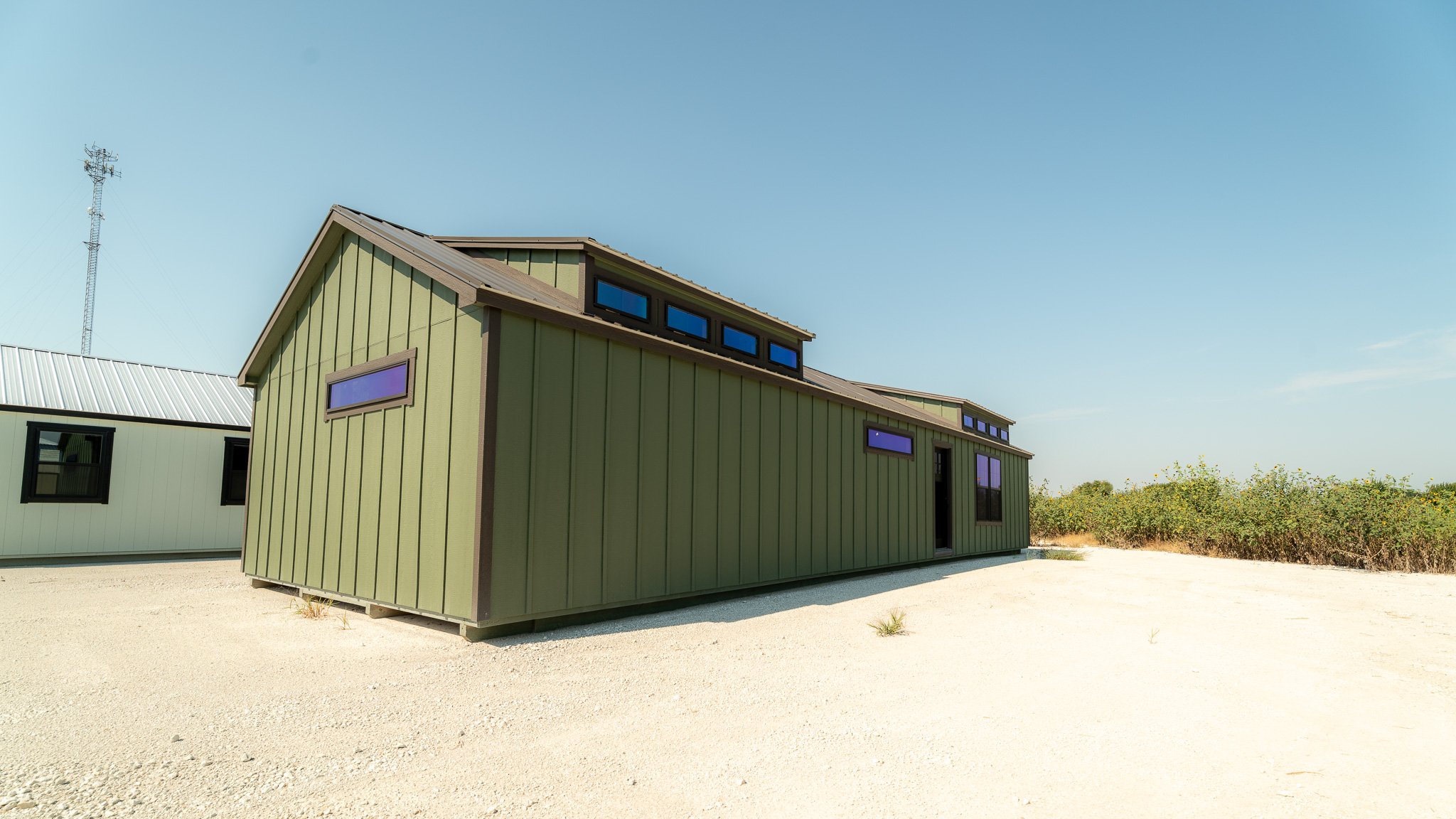

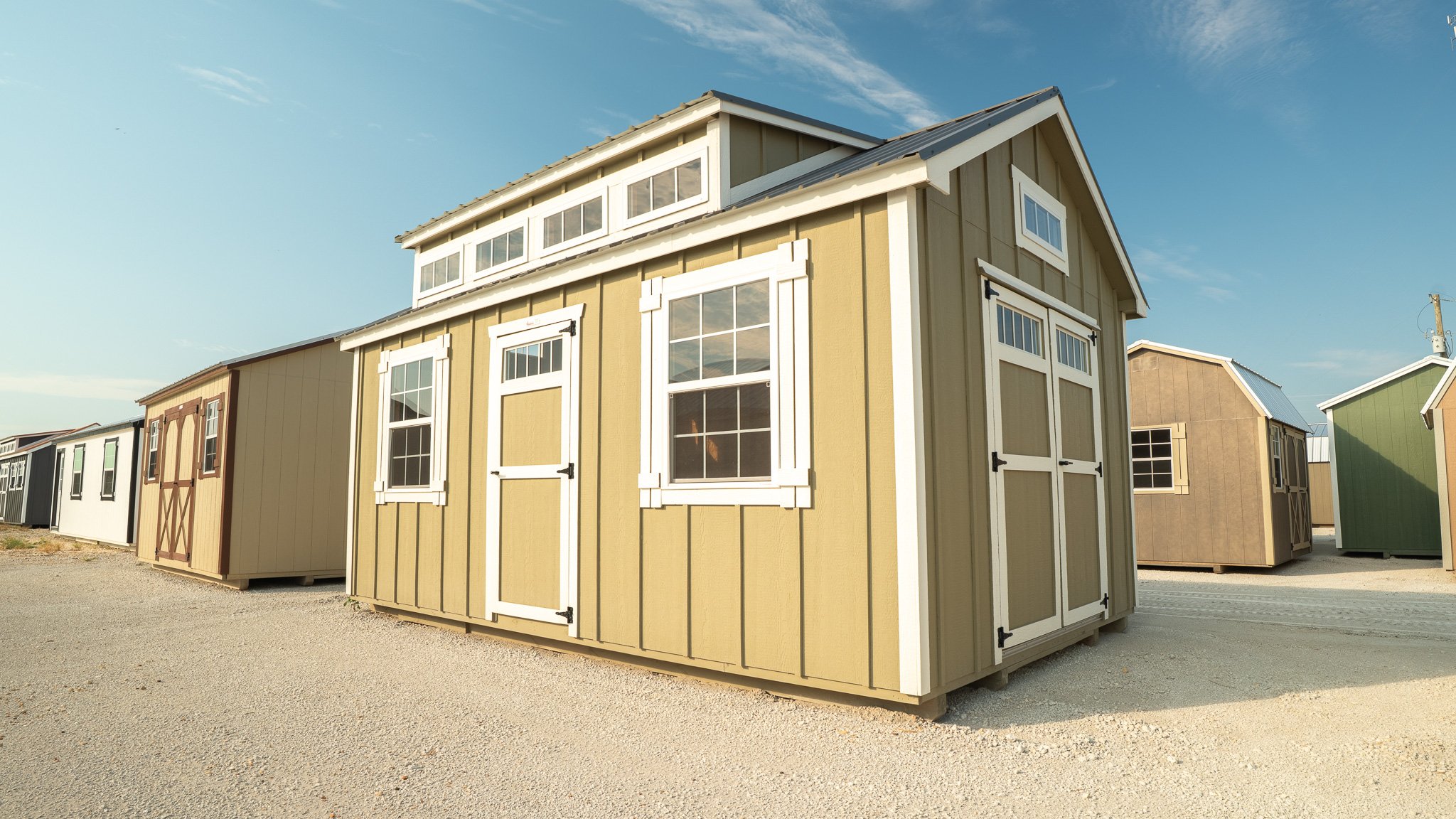

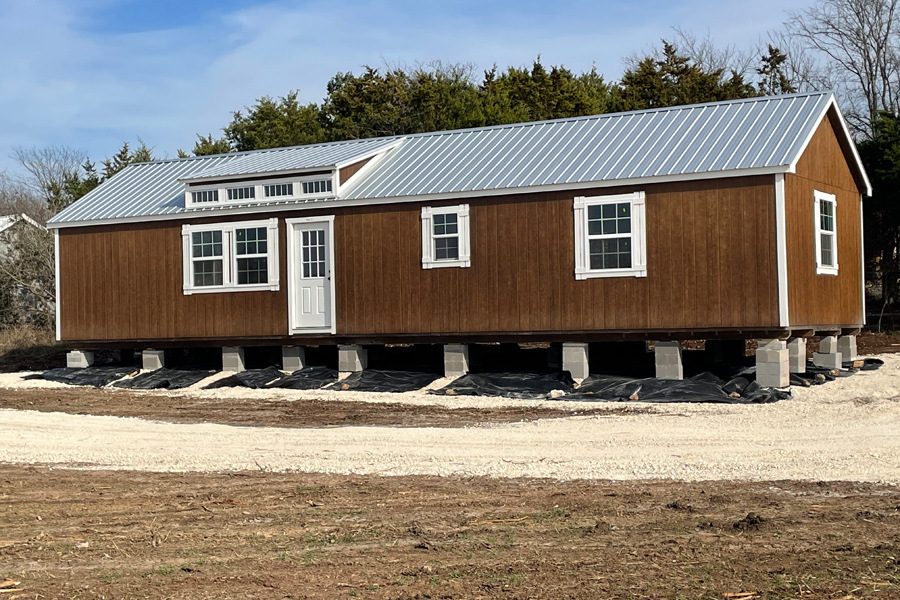

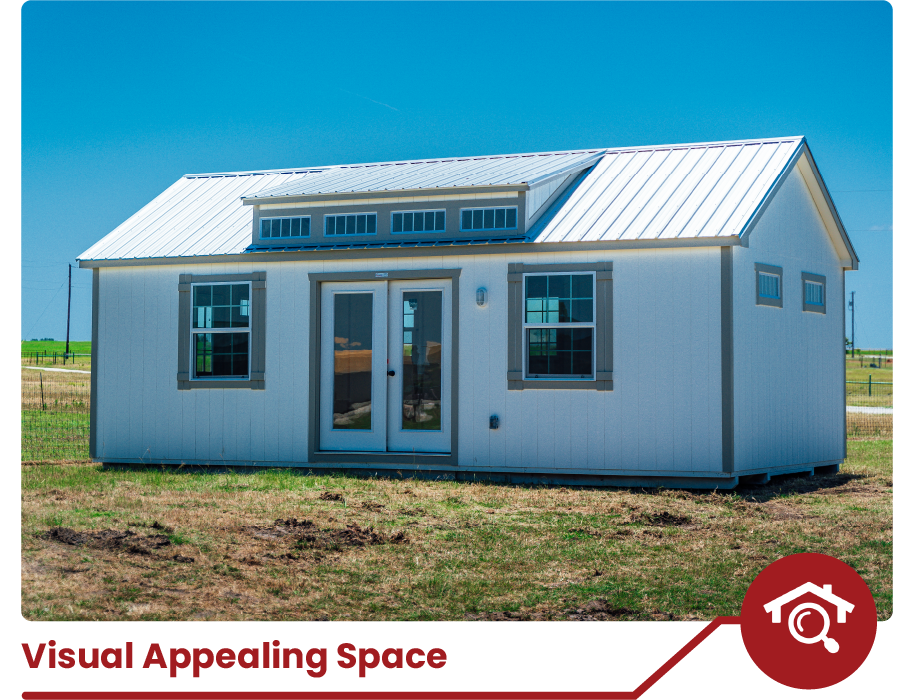

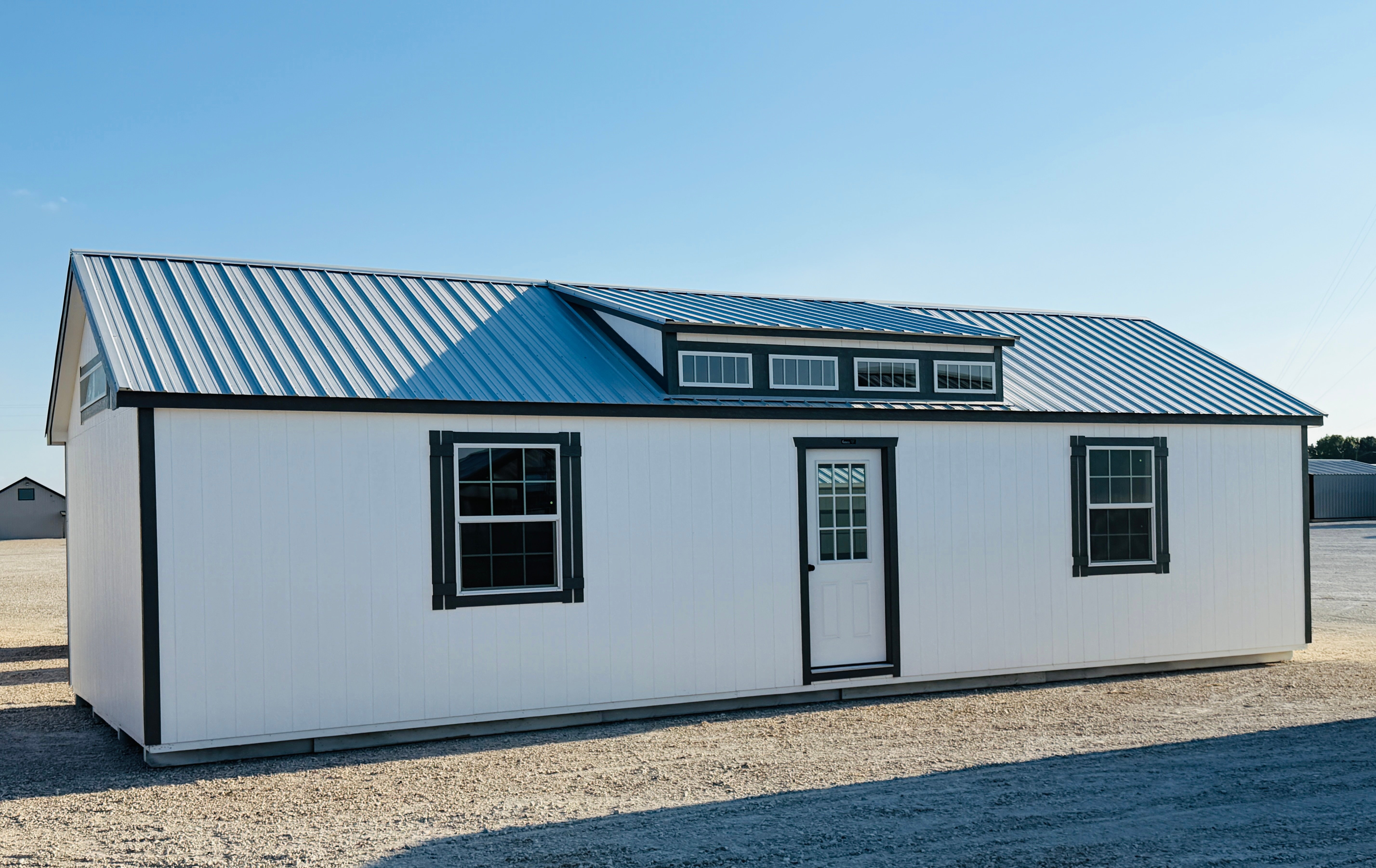

Dormer Window Cabin

A classic cabin design with added character and natural light.

Bring style and functionality together with the Dormer Cabin. Featuring its signature dormer design, this cabin adds charm, curb appeal, and extra daylight to your space while maintaining the rugged durability that defines Quality Storage Buildings.

Classic Style Meets Lasting Strength

Most cabins blend into the background, but the Dormer Cabin stands out with its timeless design and natural light. Backed by the proven durability of Quality Storage Buildings, it’s the perfect mix of beauty and resilience for your property.

All Building Features

Structure & Framing

• 4" x 6" pressure-treated timber skids for a solid foundation
• 2" x 6" pressure-treated floor joists, spaced 16" on center
• ¾" BC plywood flooring fastened with 3" ring shank nails
• 7'10" (94") tall side walls

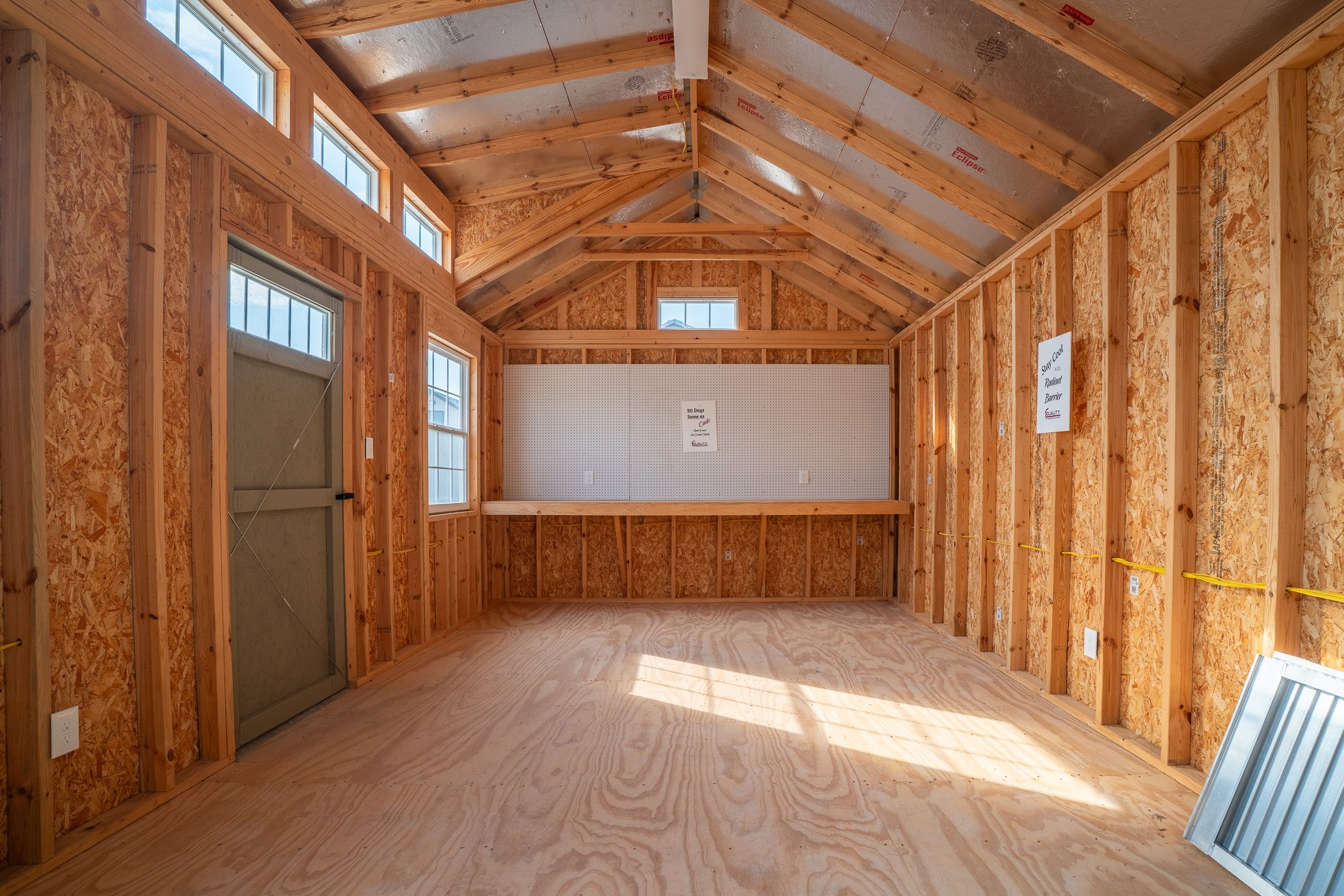

• 2" x 4" wall studs placed 16" on center with double-studded corners
• Double top plate for added wall and eave strength (2"x8" and 2"x4")
• 7/16" LP SmartSide siding with house wrap (50-year warranty)

* Cabins measuring 16x52, 18x40 and larger include an additional layer of OSB behind the LP siding, along with a 4x6 runner laminated with 2x6 treated lumber.

Exterior Finish

• All nails and joints caulked and sealed for a smooth finish
• Two coats of Haley paint with 10-year no-fade and 25-year adhesion warranty

Roof System

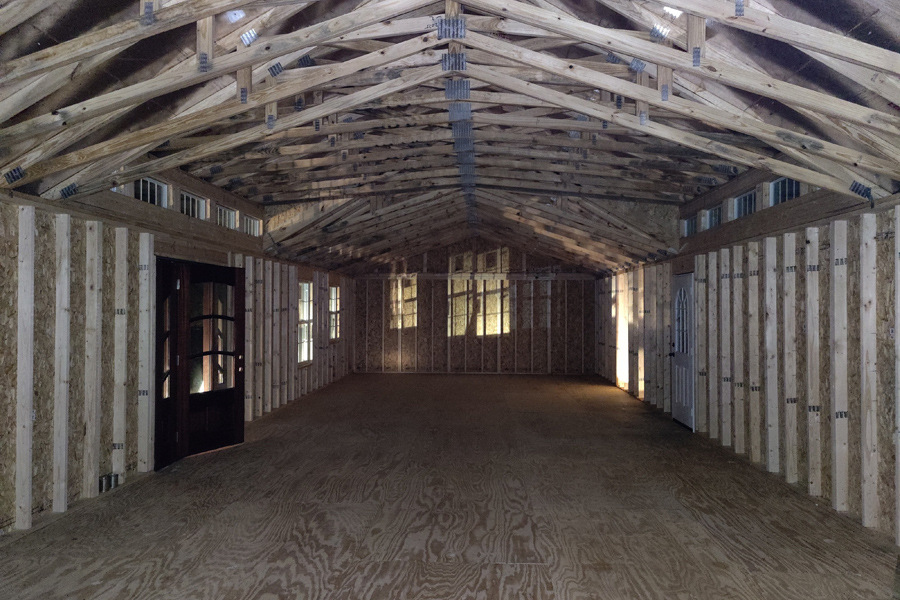

• Buildings up to 12' wide: 2" x 4" roof trusses, 24" on center
• Buildings 14'–16' wide: 2" x 6" roof trusses, 24" on center
• Trusses plated with 2-¼" x 4" steel plates for strength
• 7/16" OSB roof sheathing with synthetic felt for protection
• Complete 6" overhang with drip edge for water control
• Choice of 30-year dimensional shingles or 40-year metal roofing
• Vented ridge plus 8" x 16" end wall vents for airflow

Dormer & Openings

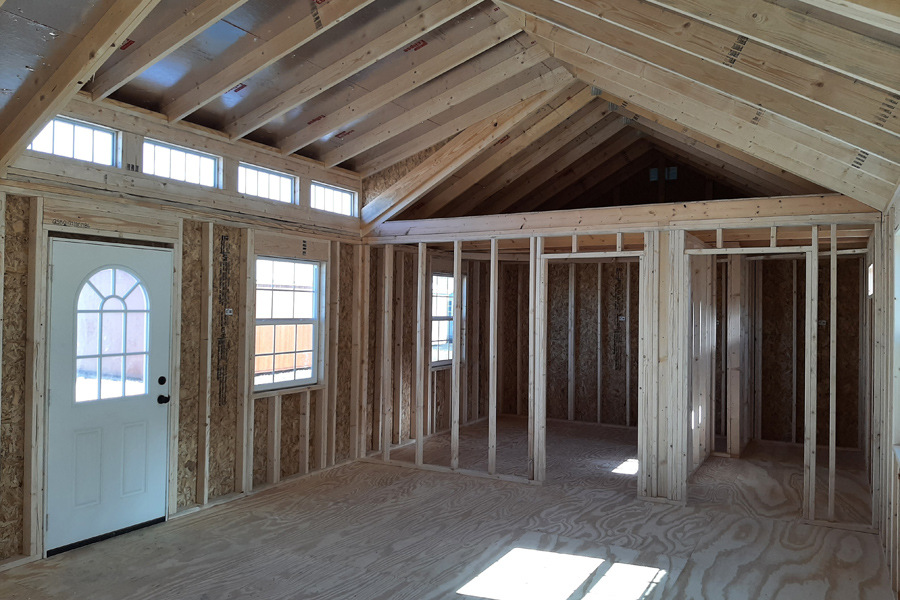

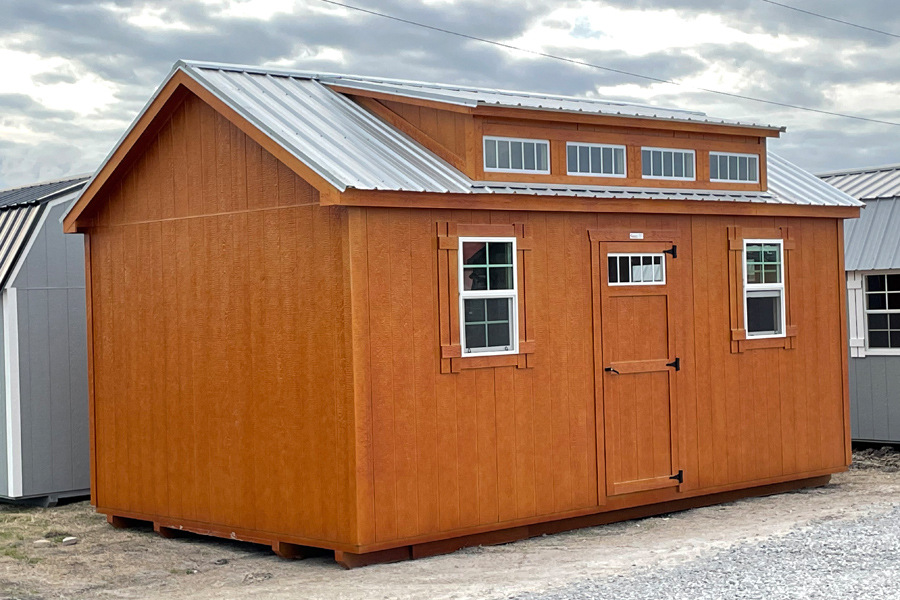

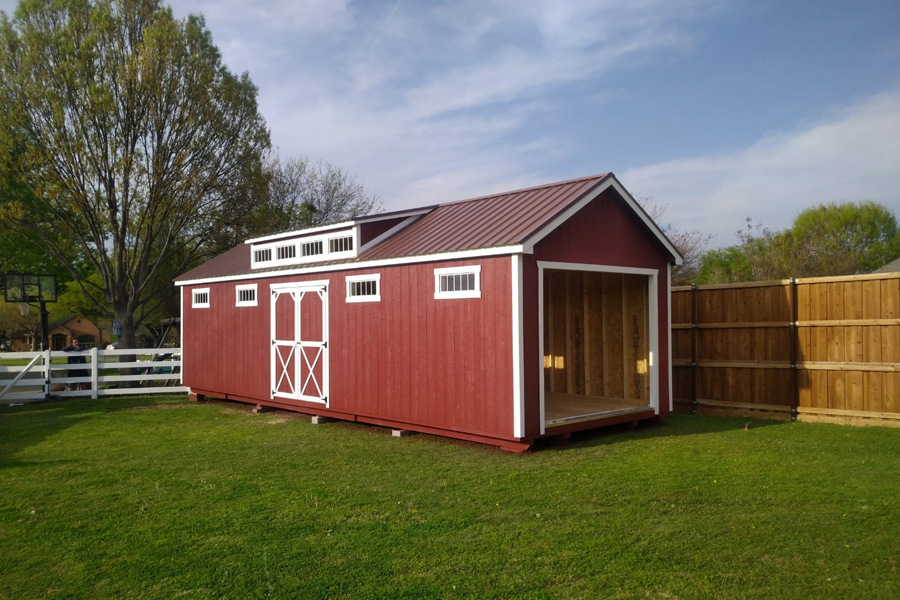

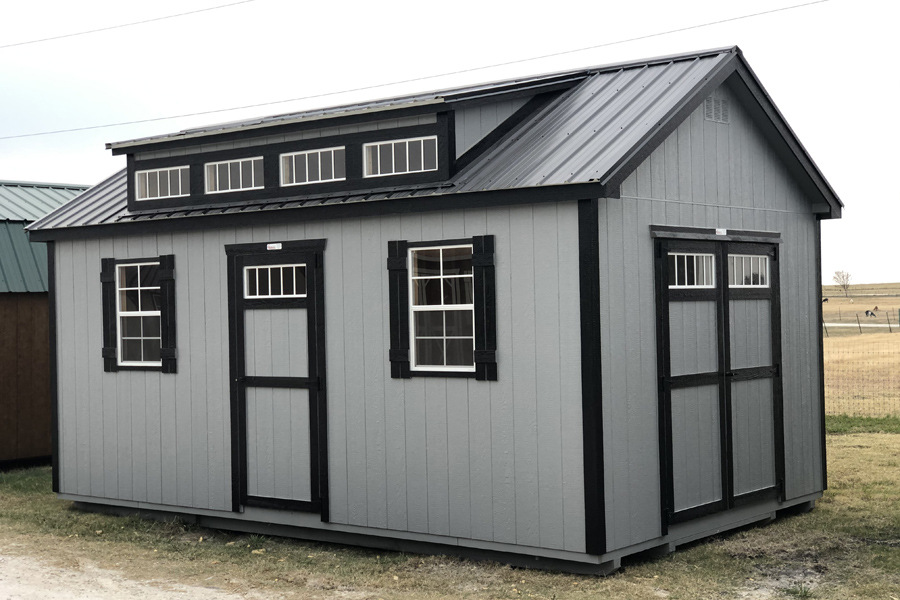

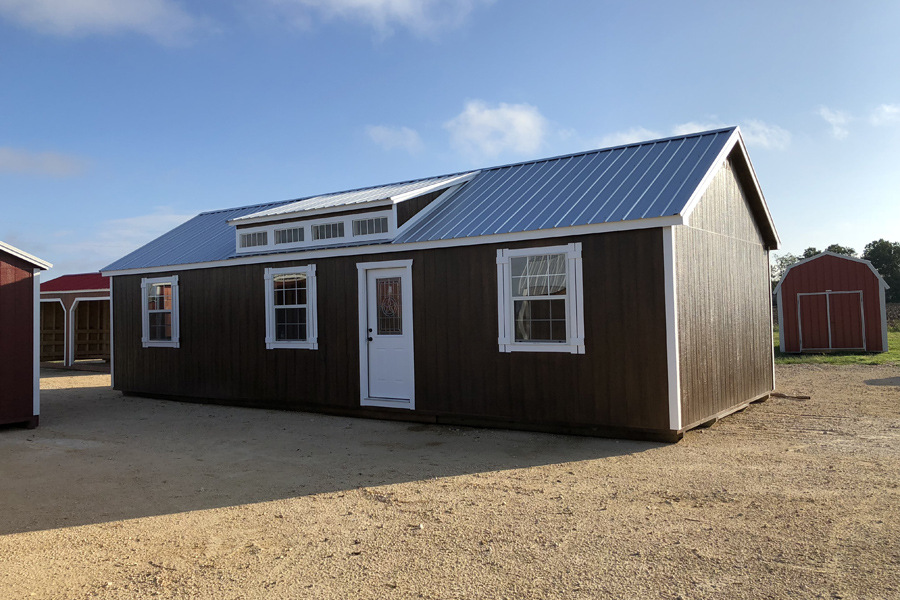

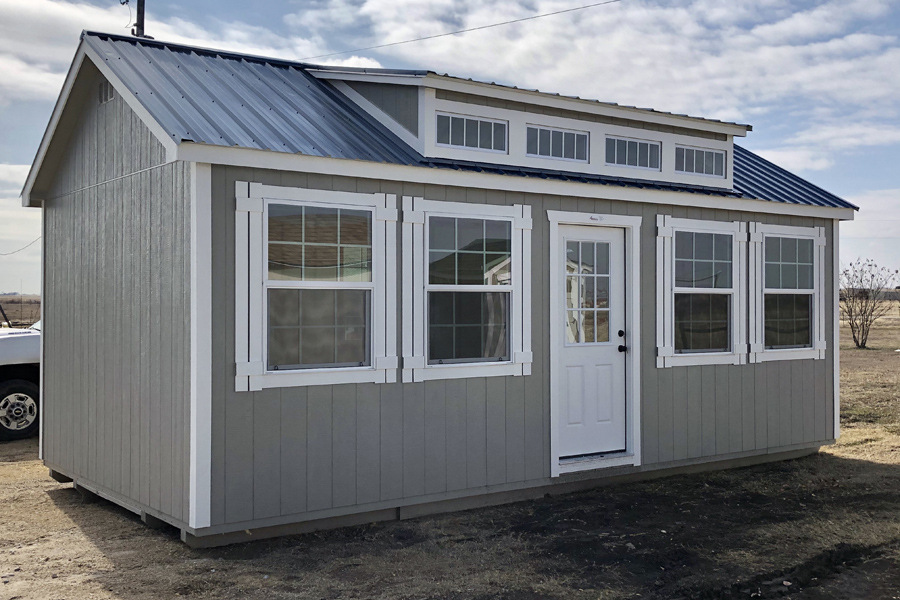

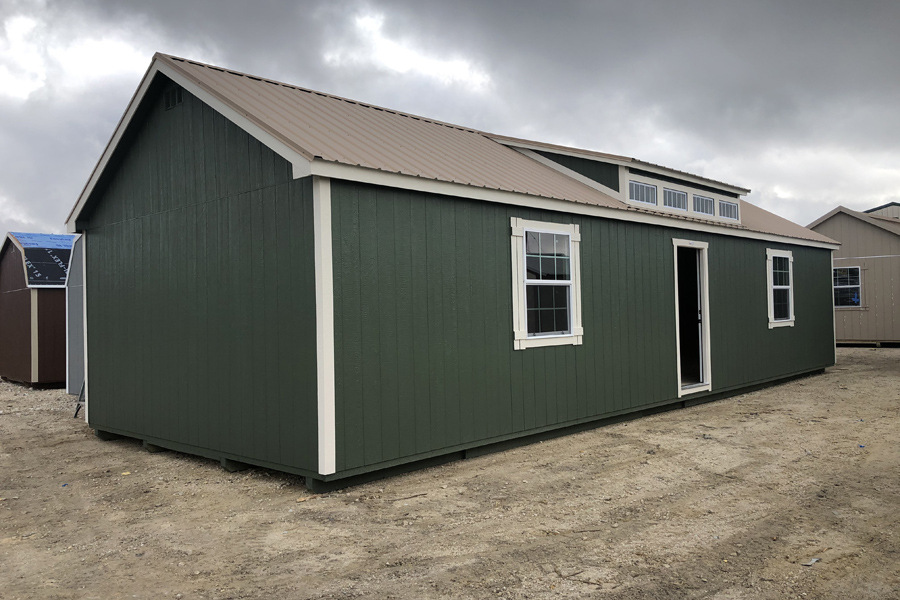

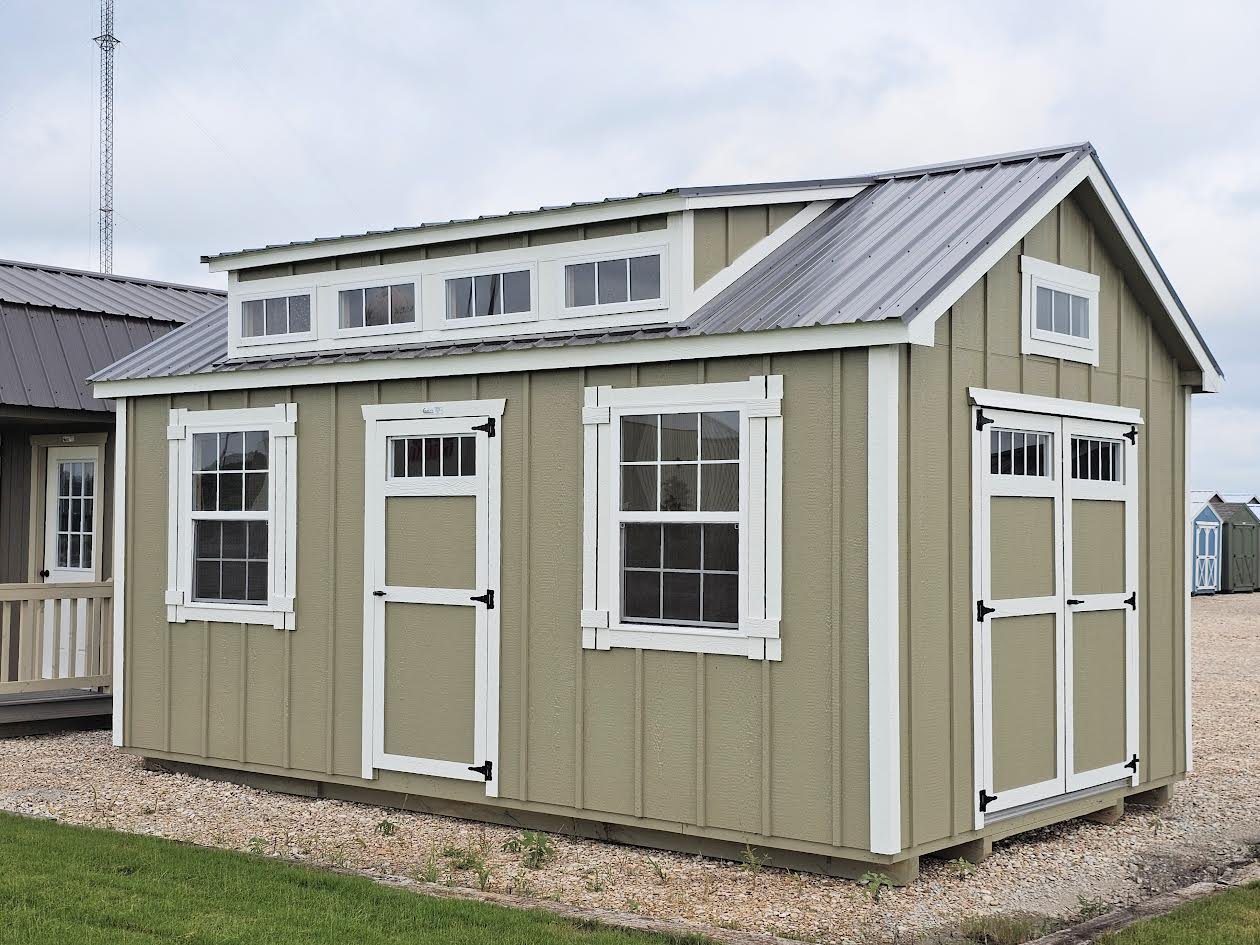

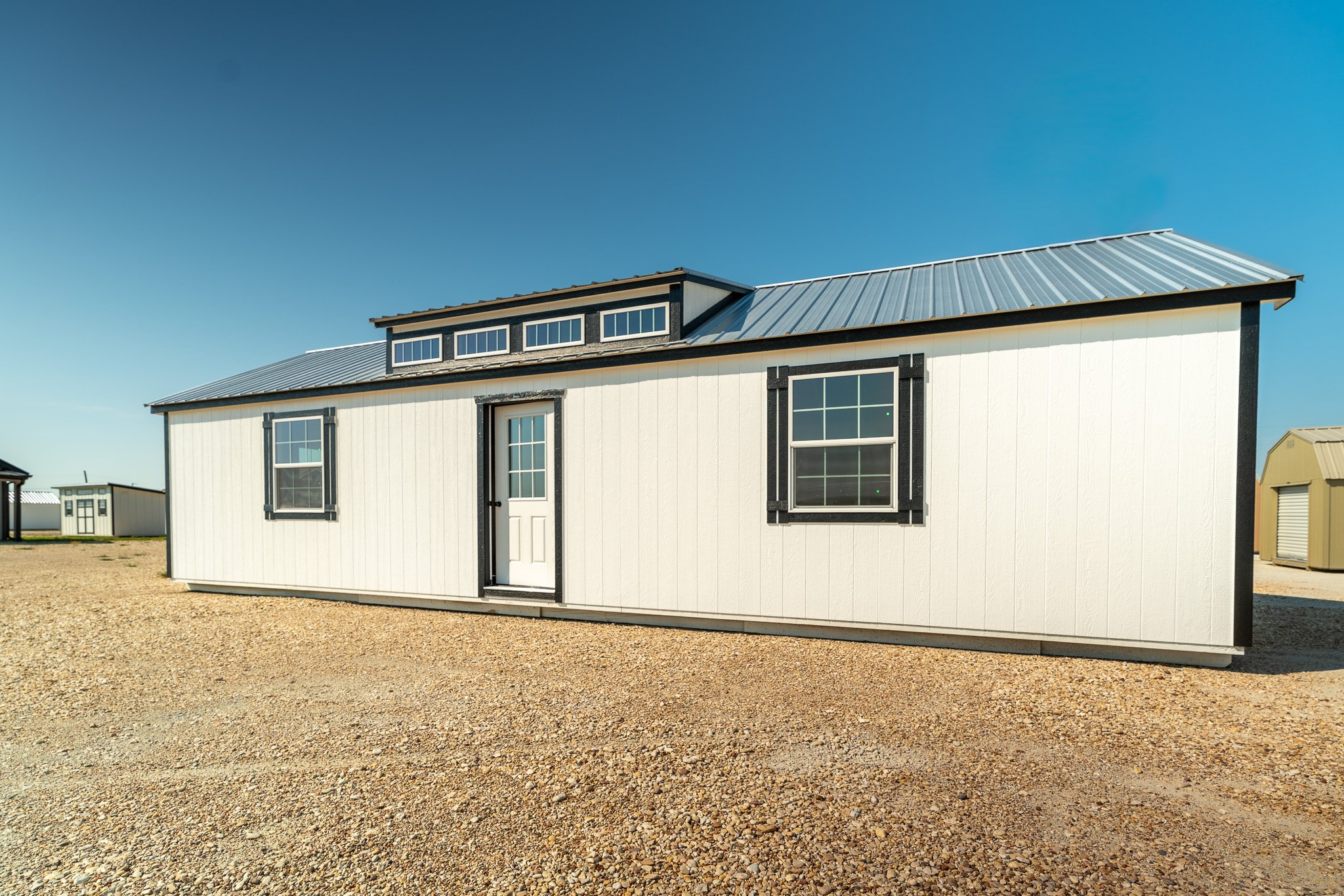

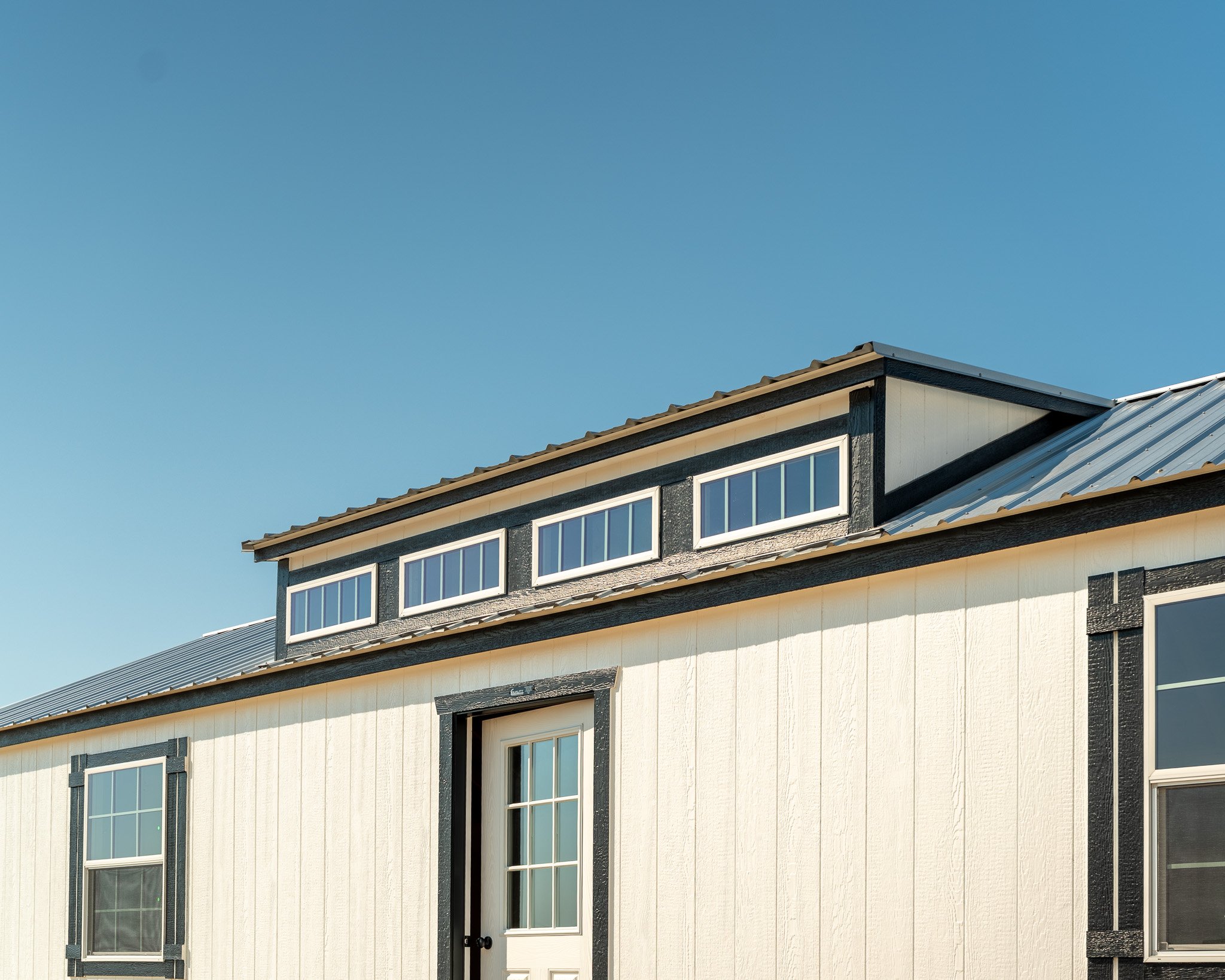

• Signature 12' dormer with transom windows for added light and style
• Two 3' x 4' windows with shutters
• One 9-lite fiberglass door
